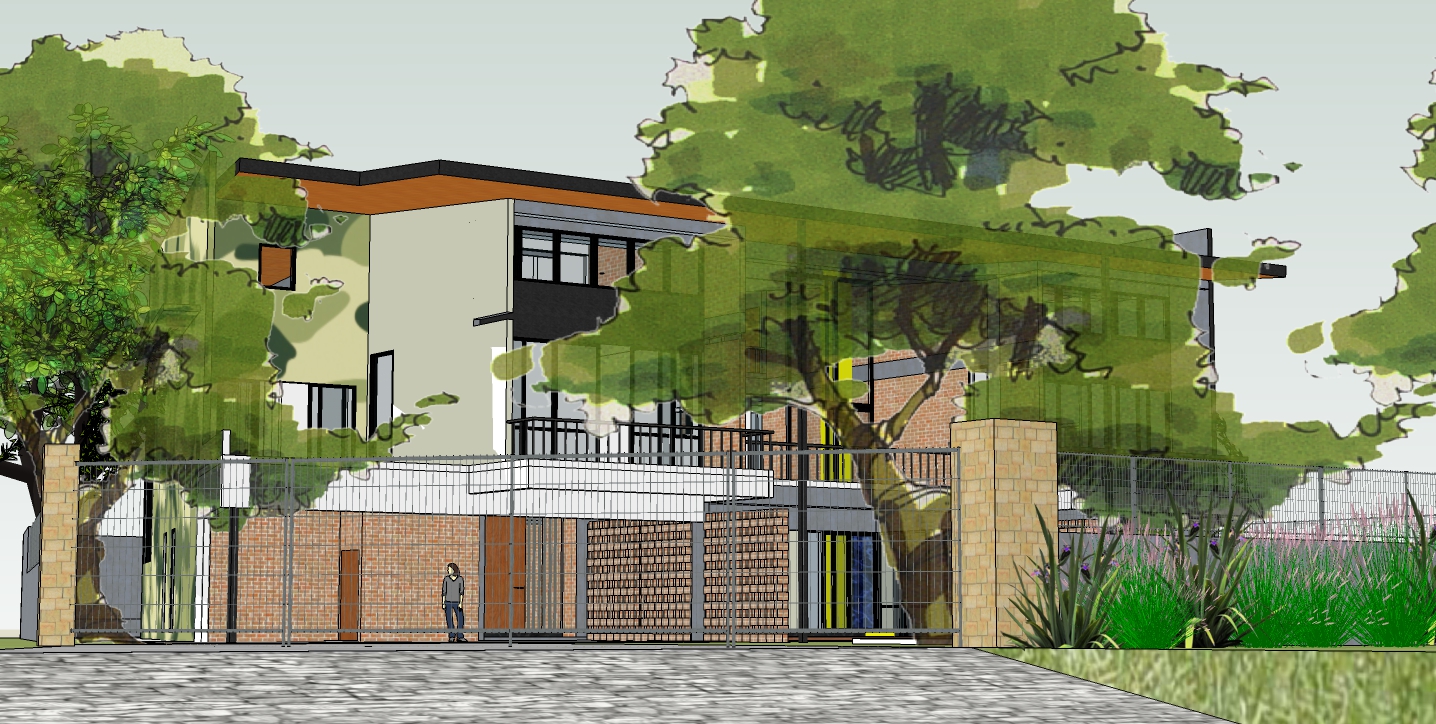

A GBI Platinum (DA) rated tropical house planned for the site and conceptualized along the lines of a tree

CONCEPT & TECHNOLOGY

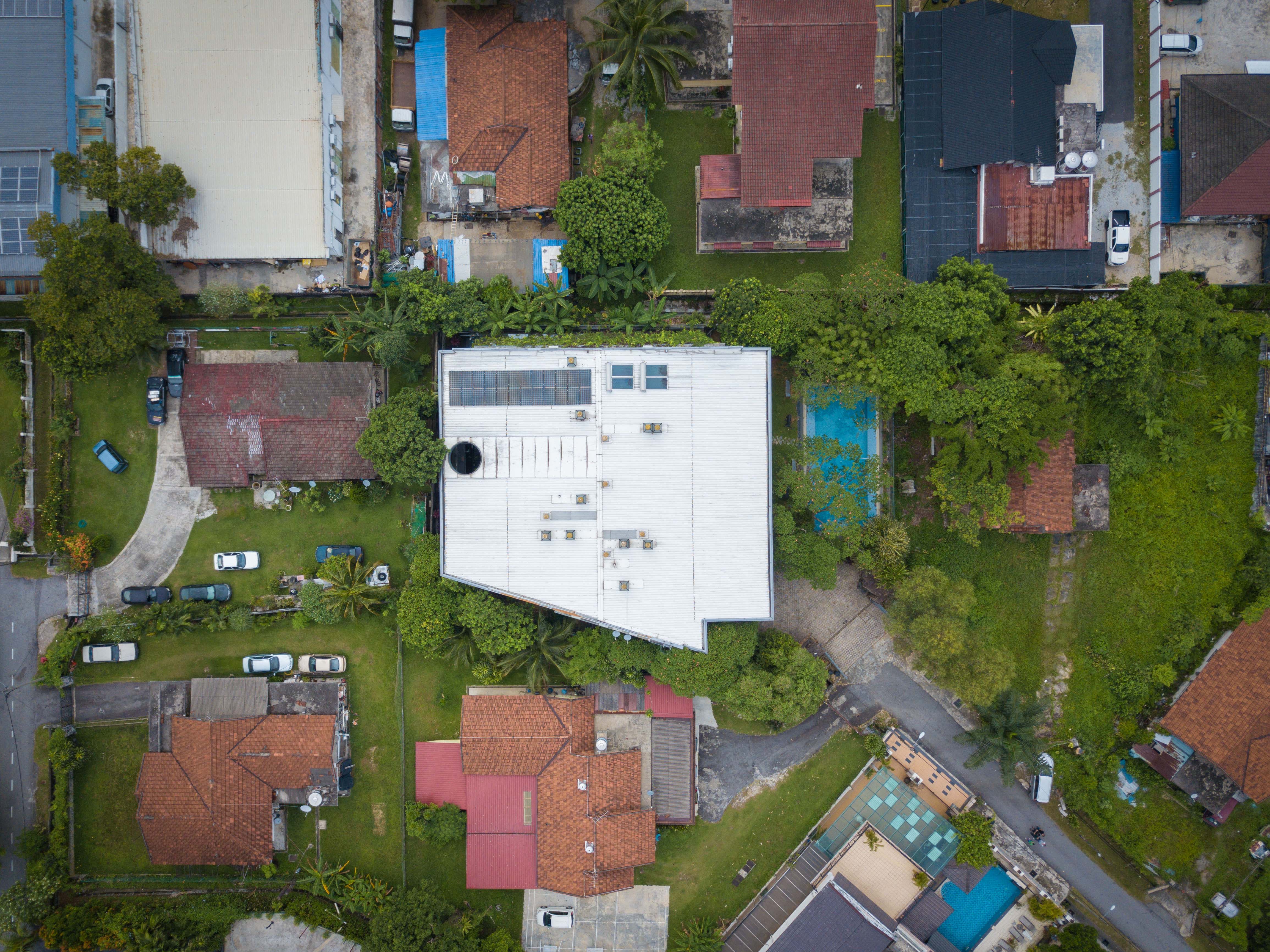

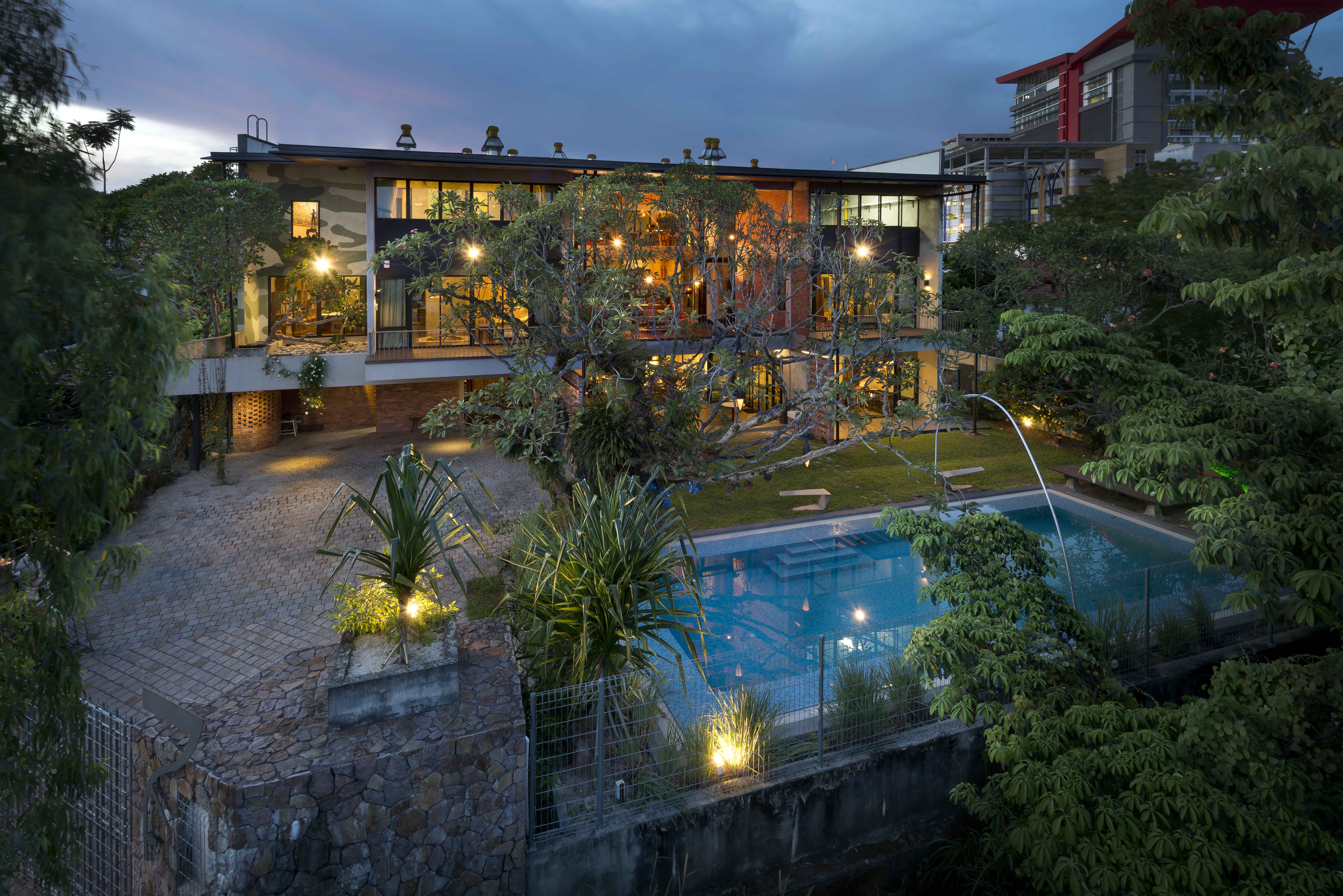

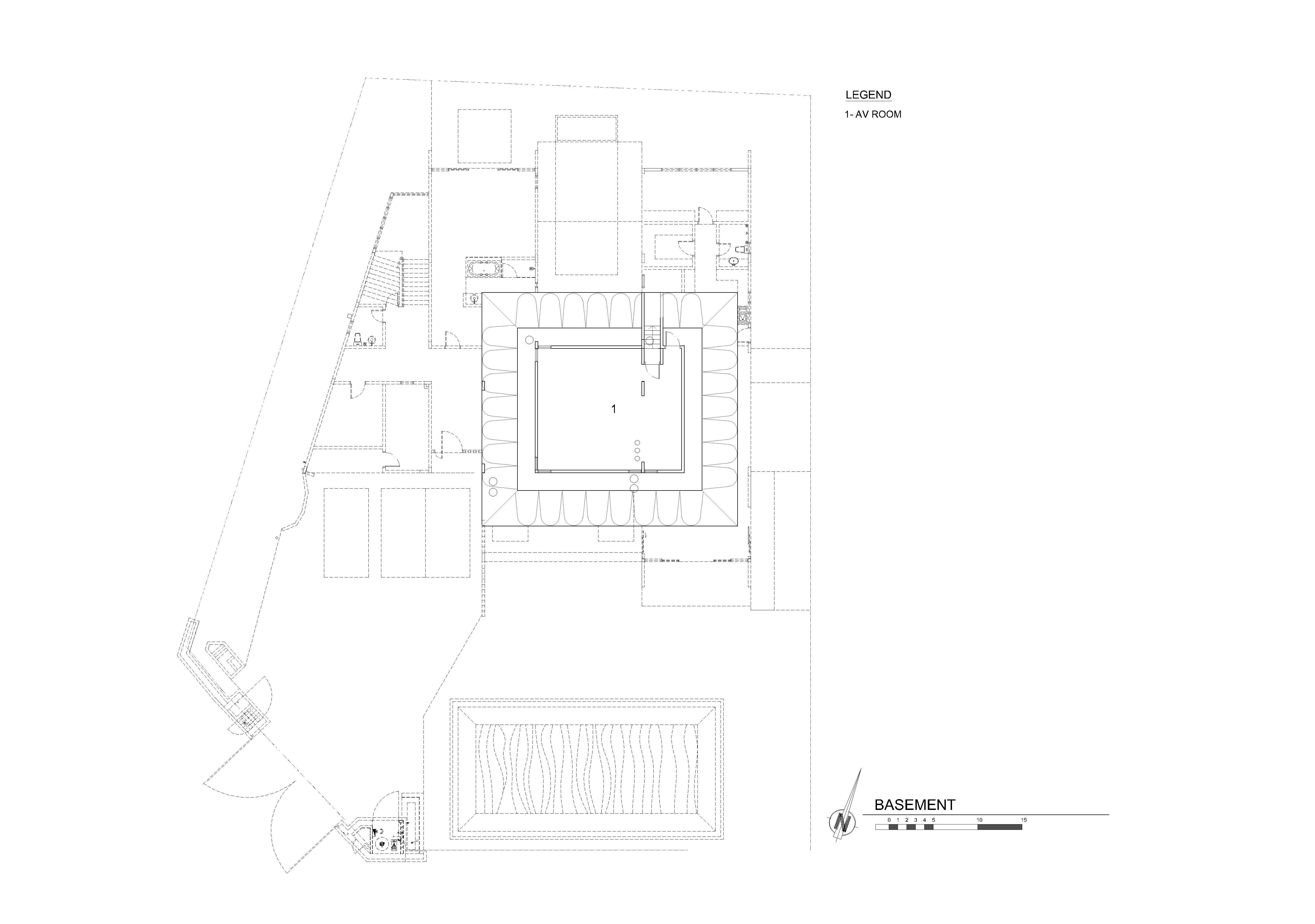

The S11 house is located in an established older suburb of Petaling Jaya. The existing old house on the site was built in the early 1960’s and had become dilapidated and run-down over the years. A new green tropical house was planned for the site and conceptualized along the lines of a tree. The large tree canopy would cover and shelter the living spaces underneath it. The S11 House was designed to achieve the highest level Platinum rating of Malaysia’s Green Building Index (GBI).

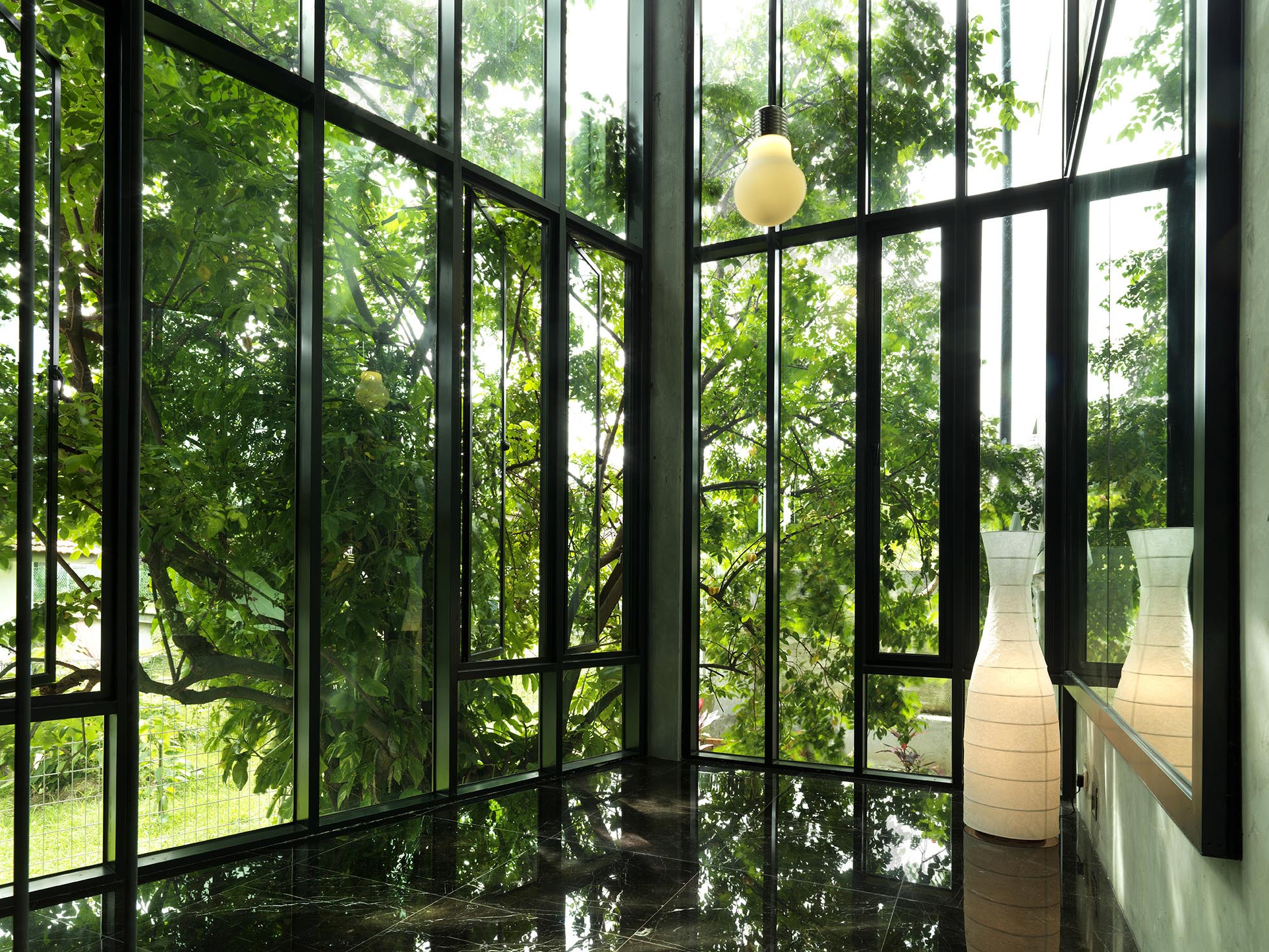

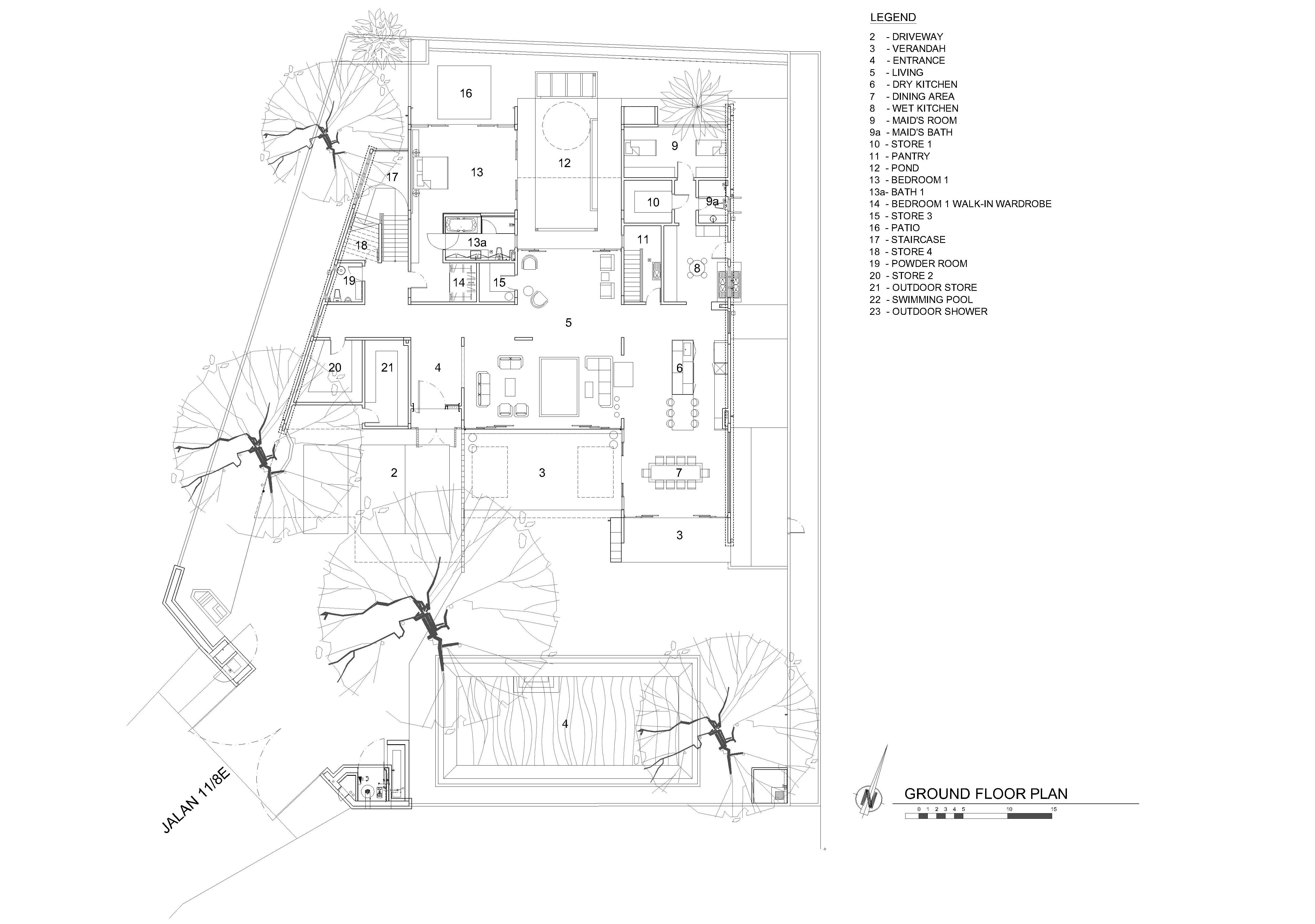

There were five significant existing trees on the site. Three very old and sculptural frangipanis, a large star-fruit and a coconut palm tree. All these were retained and the new house was set in the midst of them. Much of the demolished old house materials were re-used. Old crushed concrete roof tiles for gravel fill, old clay bricks were cleaned and re-used for feature walls, roofing timbers were used for formwork strutting and propping, old steel were all sold off to steel yards, crushed concrete and cement aprons were re-used for backfilling aggregate.

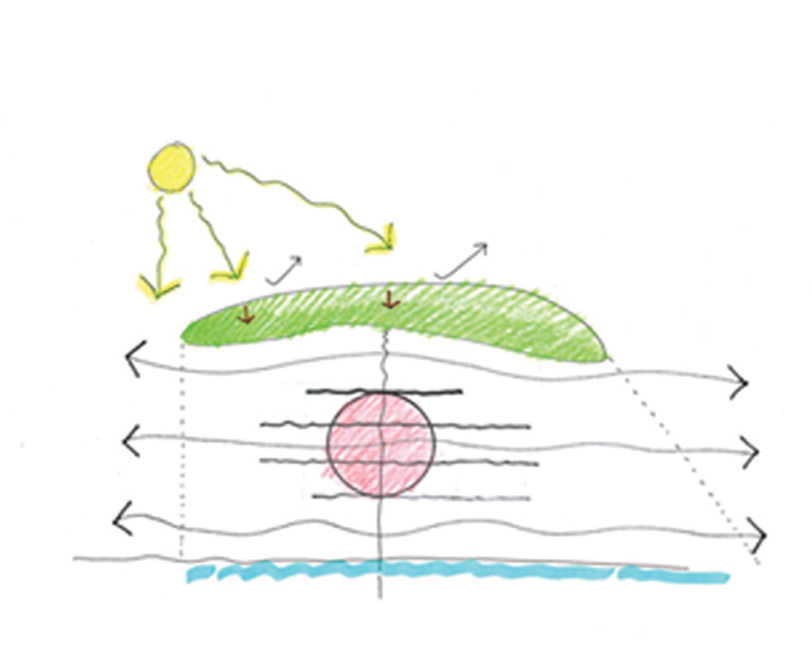

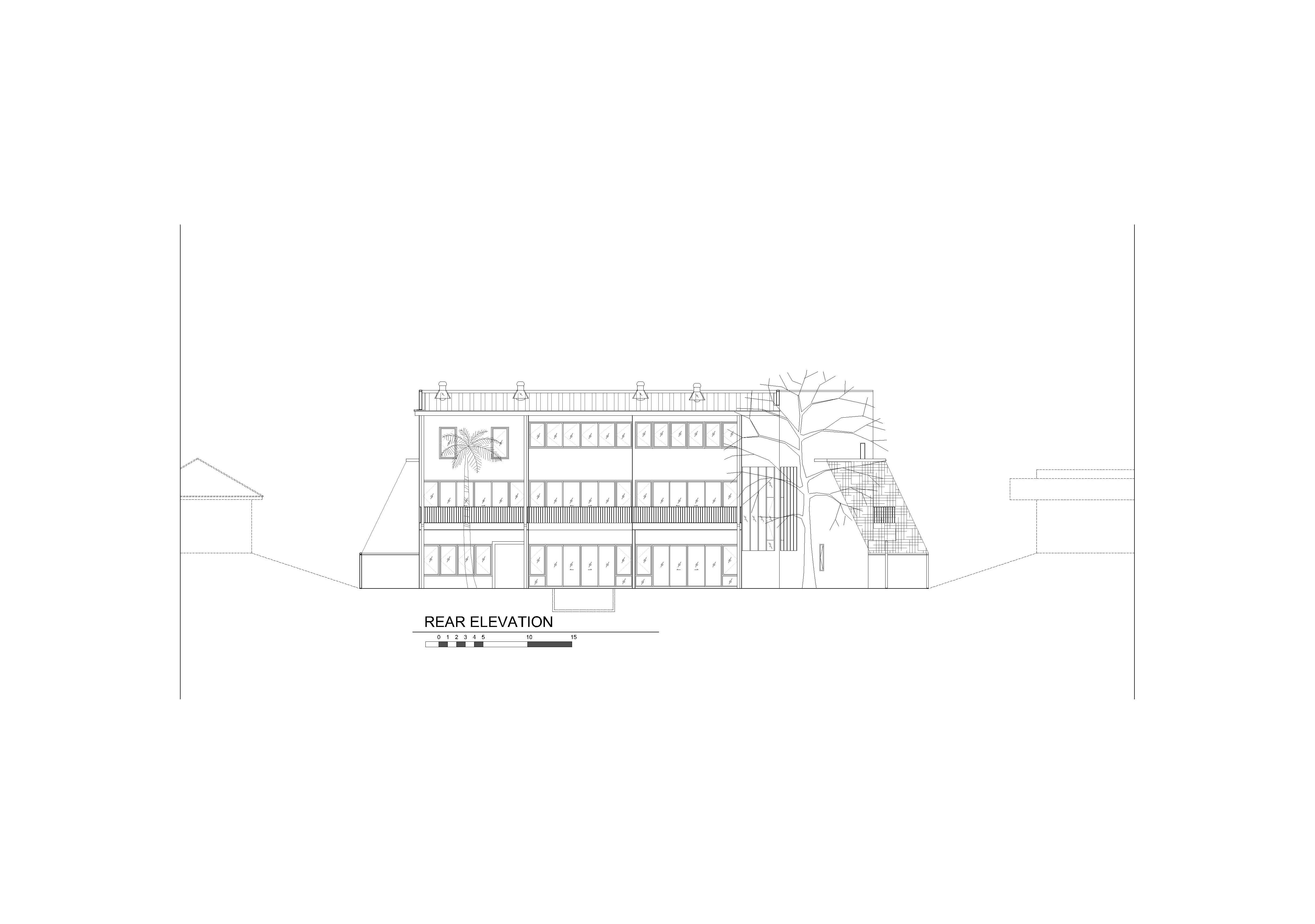

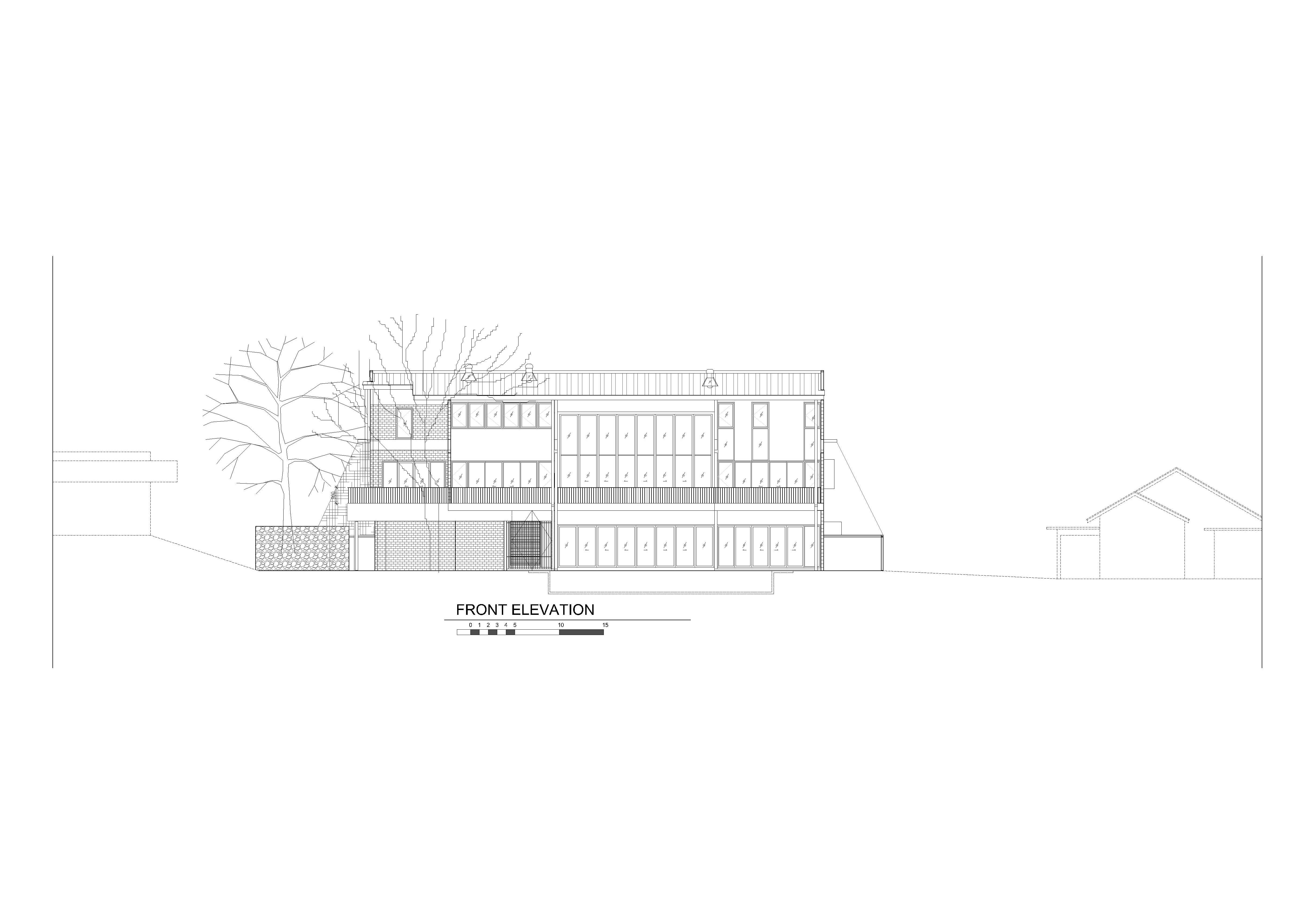

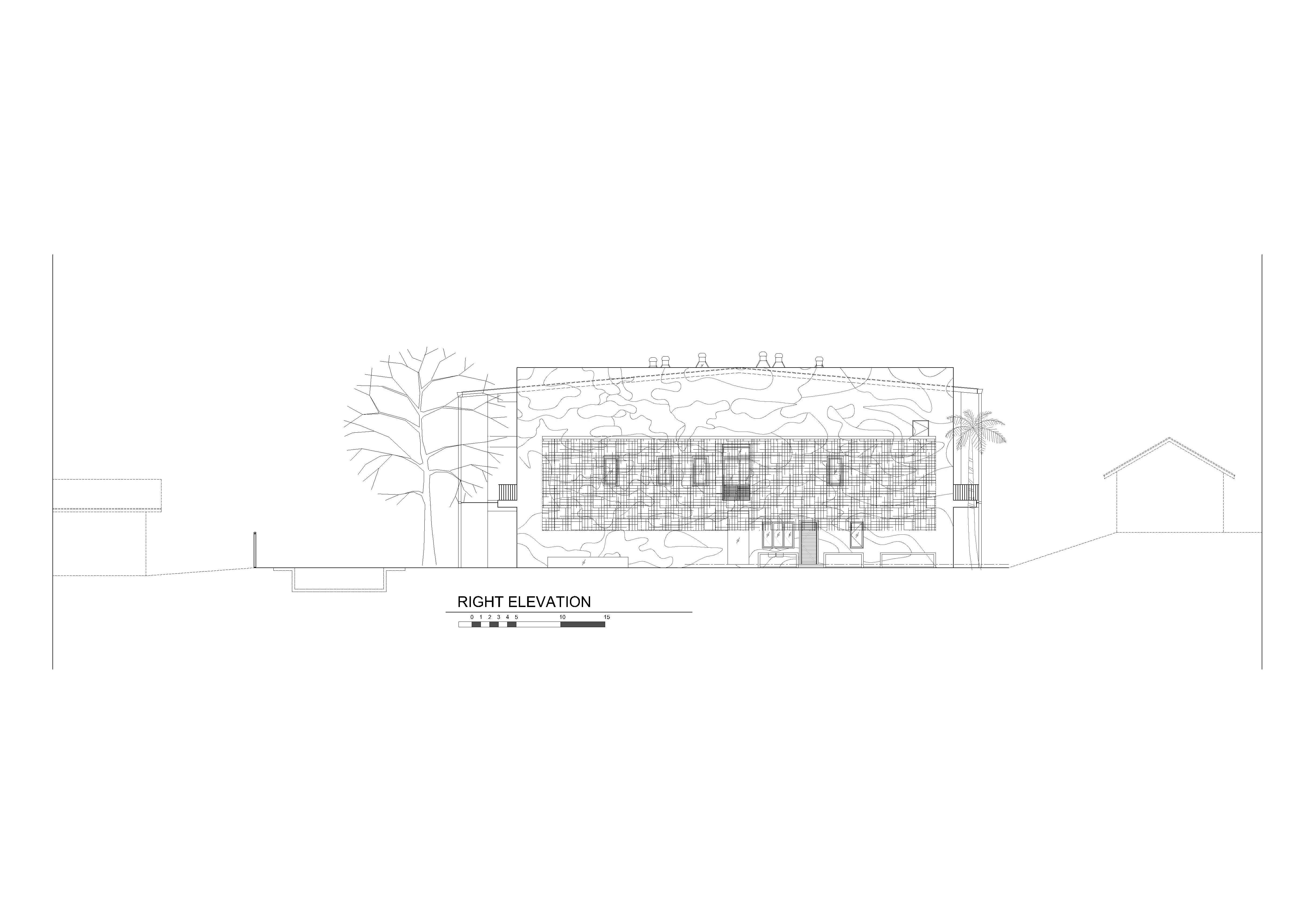

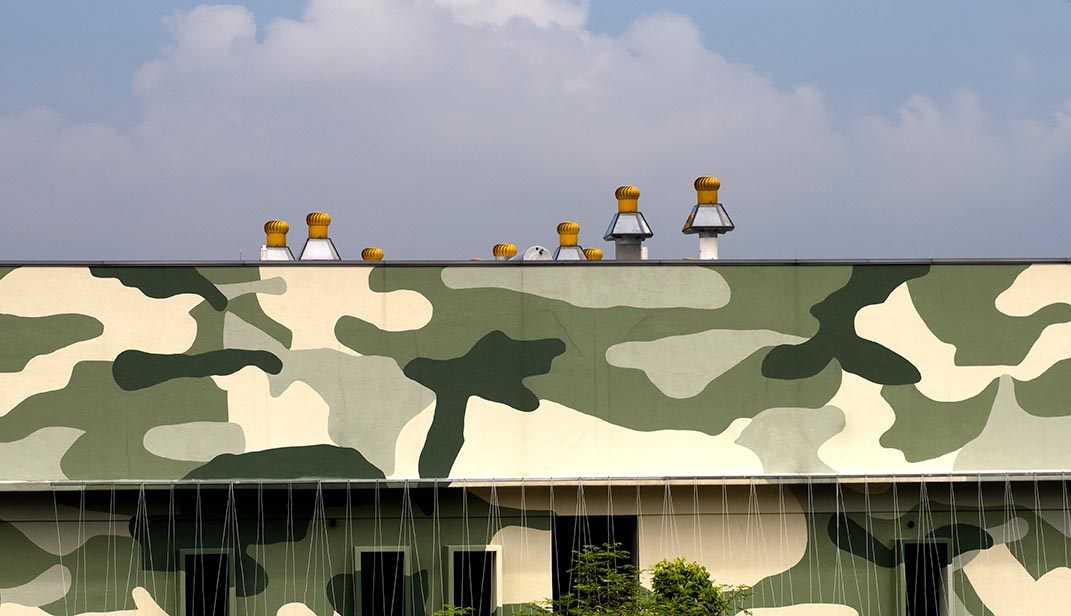

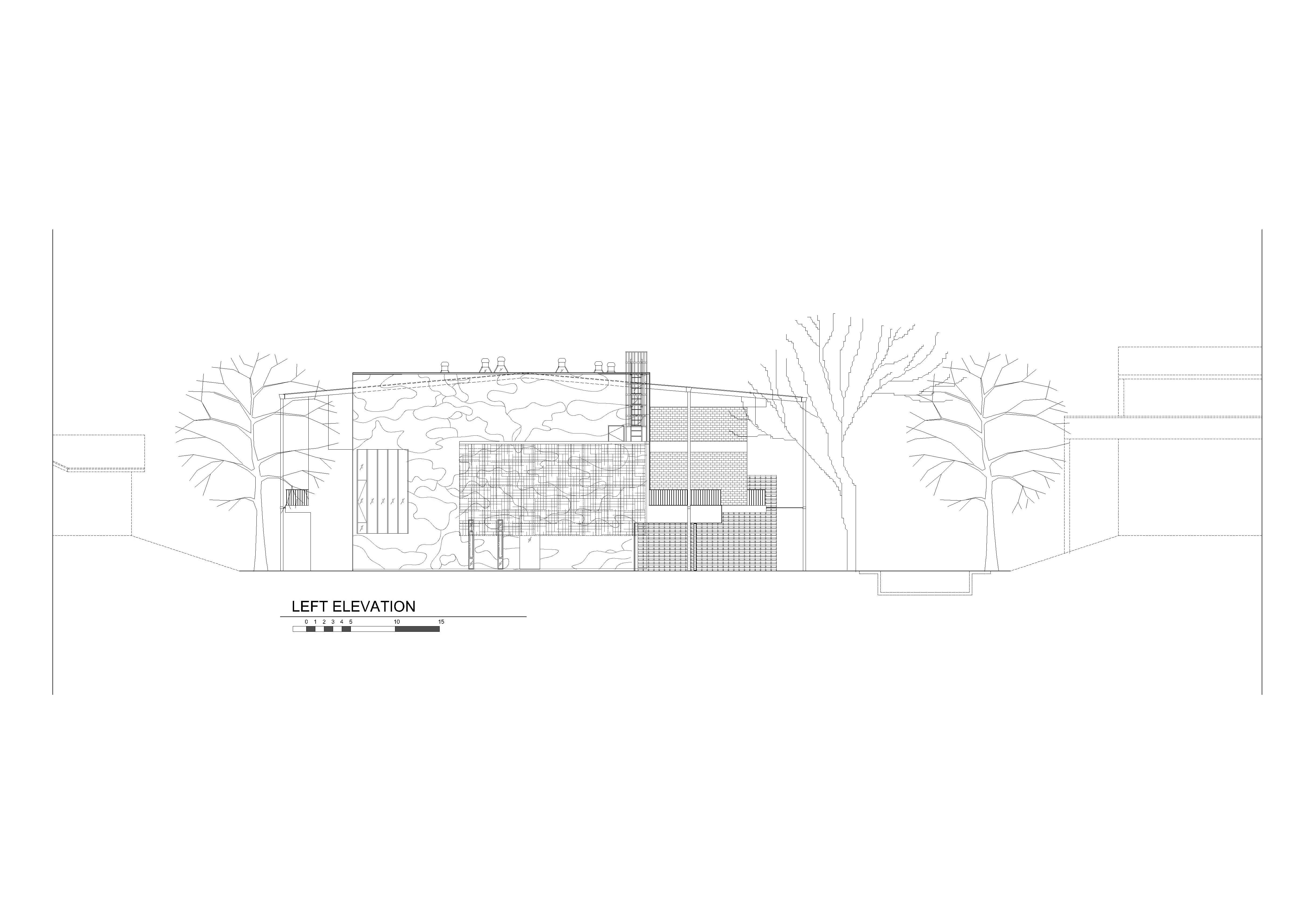

The S11 house has a clear north-south orientation for all its openings and windows. The east and west walls were deliberately void of any significant glazed openings and were constructed of better insulated aerated light weight concrete blocks. In addition they were coated in heat reflecting paint in camouflage motif and also shaded by a wire netting screen wall of fruit and vegetable climbers. These would help to reduce much of the heat gain through the east and west walls. The large tree-like canopy roof is constructed of lightweight recyclable profiled steel metal sheets coated in a light off-white colour to minimize heat absorption. The roof insulation comprises 200mm thick 50kg/m3 rockwool and two layers of heat reflective foil. A 200mm thick ventilated air space is left between the metal ceiling lining and the rockwool to further improve heat insulation. The overall roof U value is an impressive 0.14. The glazing comprises 9.38mm thick low-E safety laminated glass with a 90% openable area. The overall building envelope OTTV is 29.63.

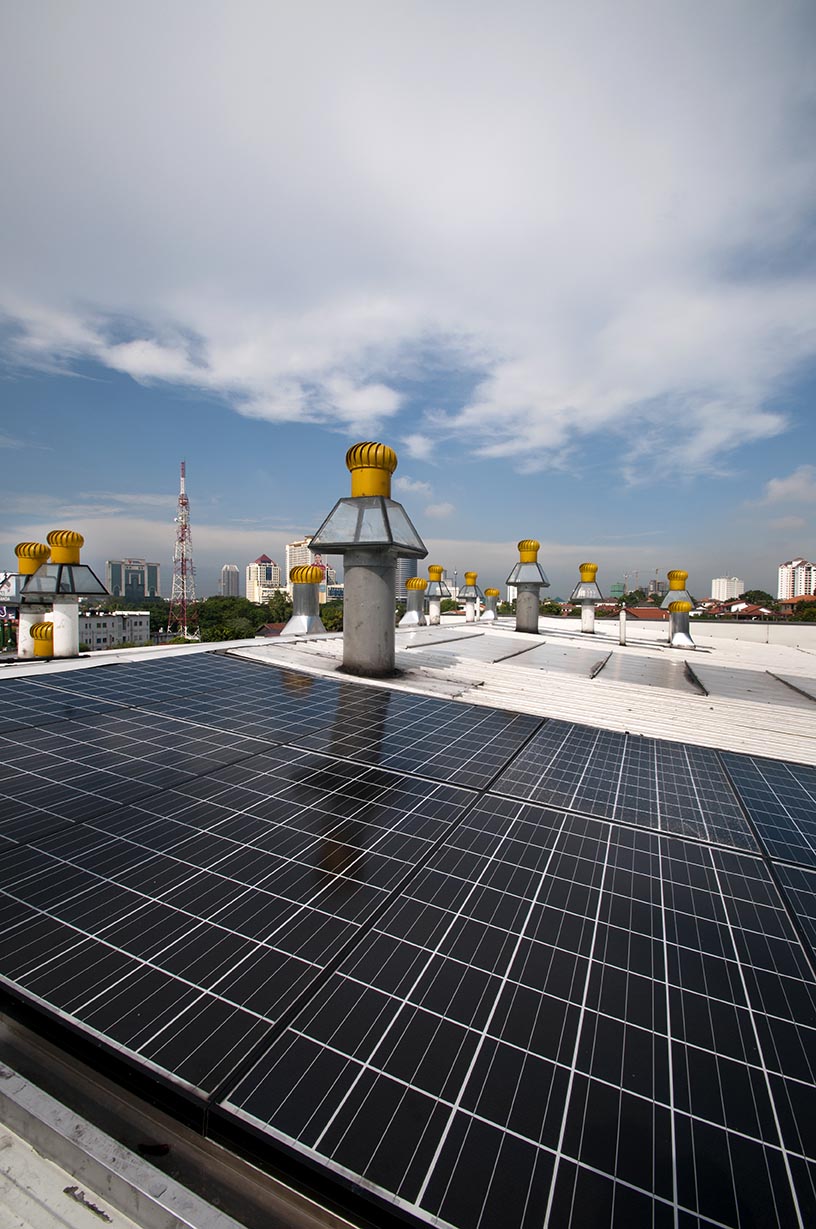

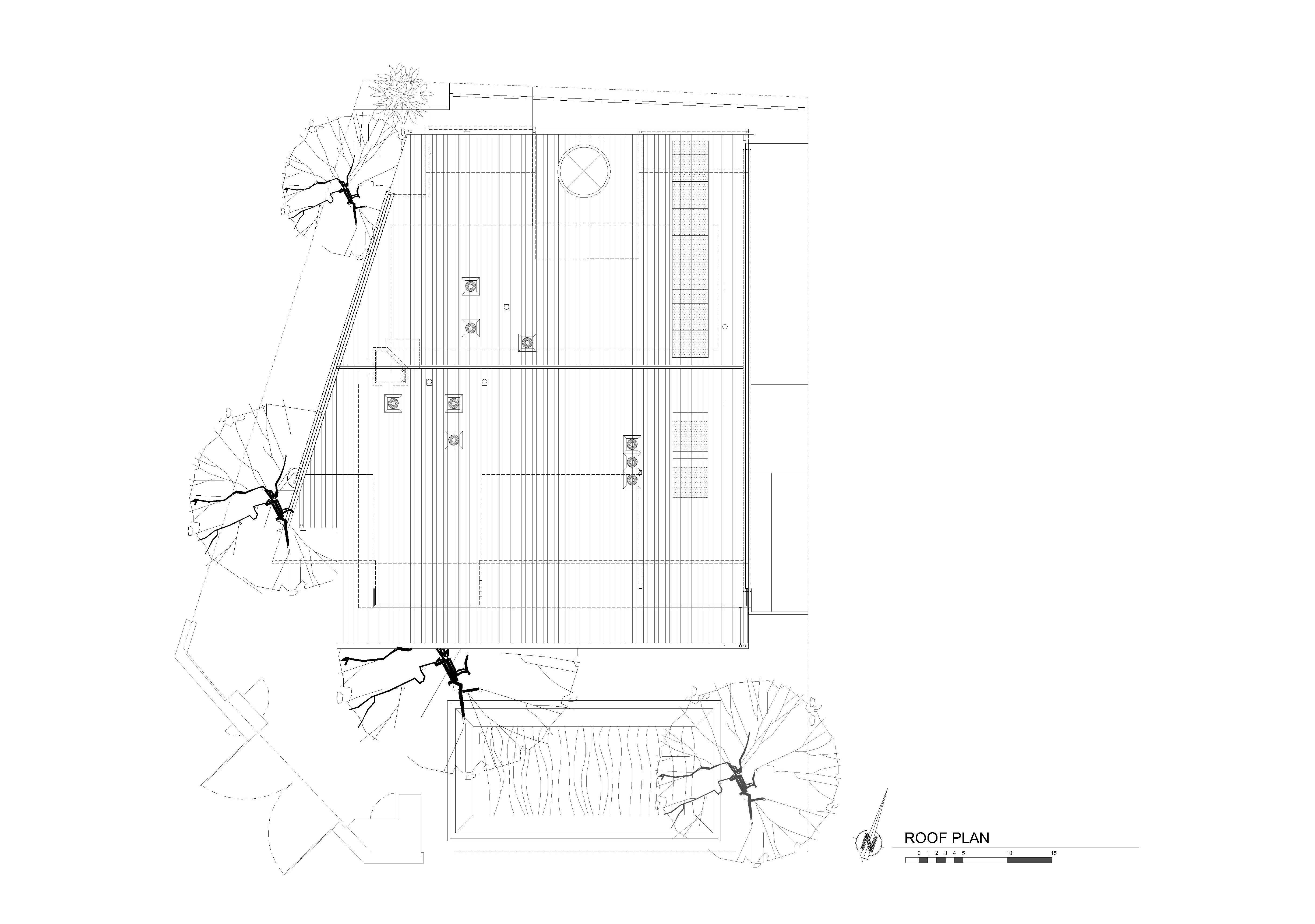

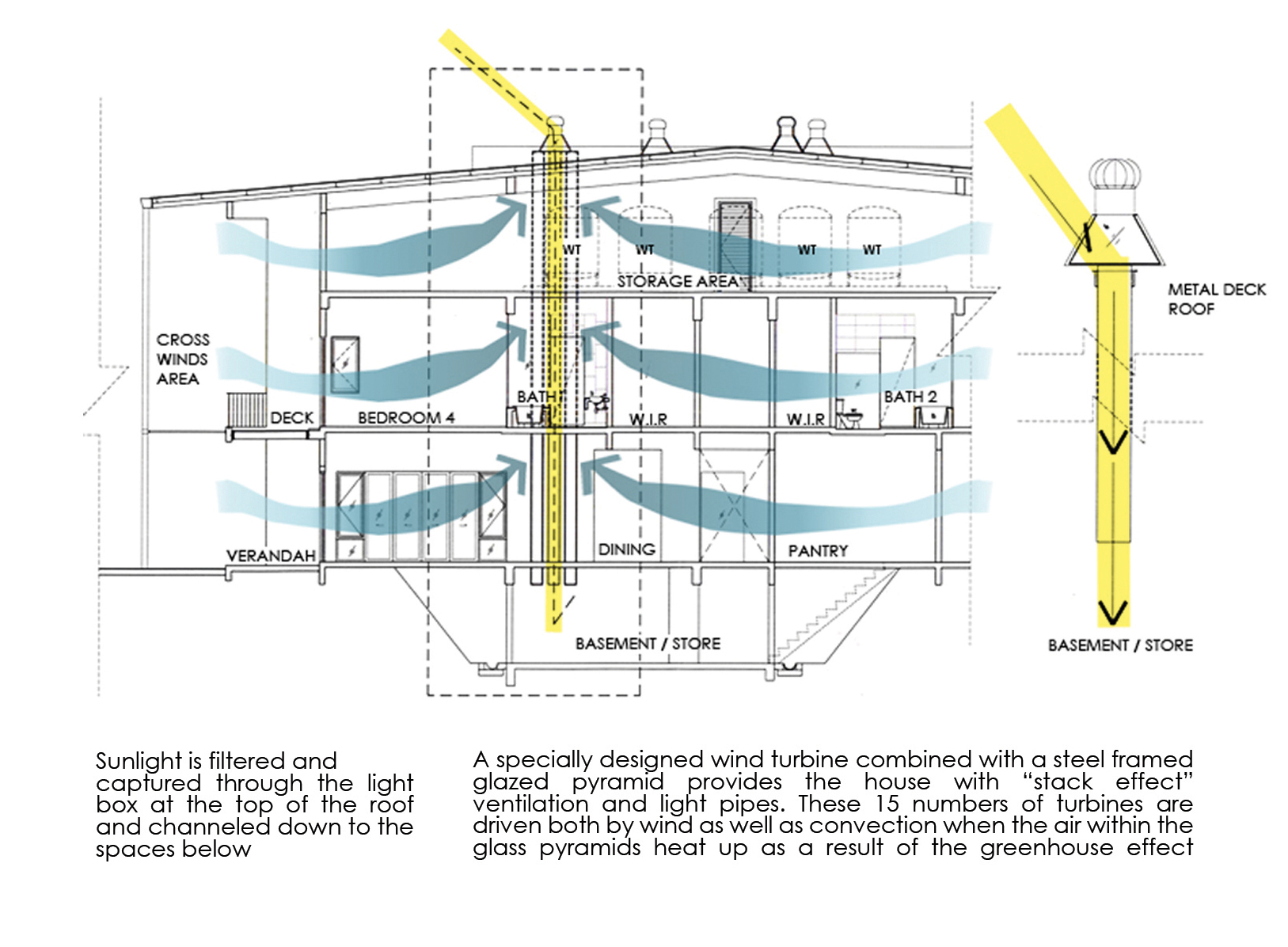

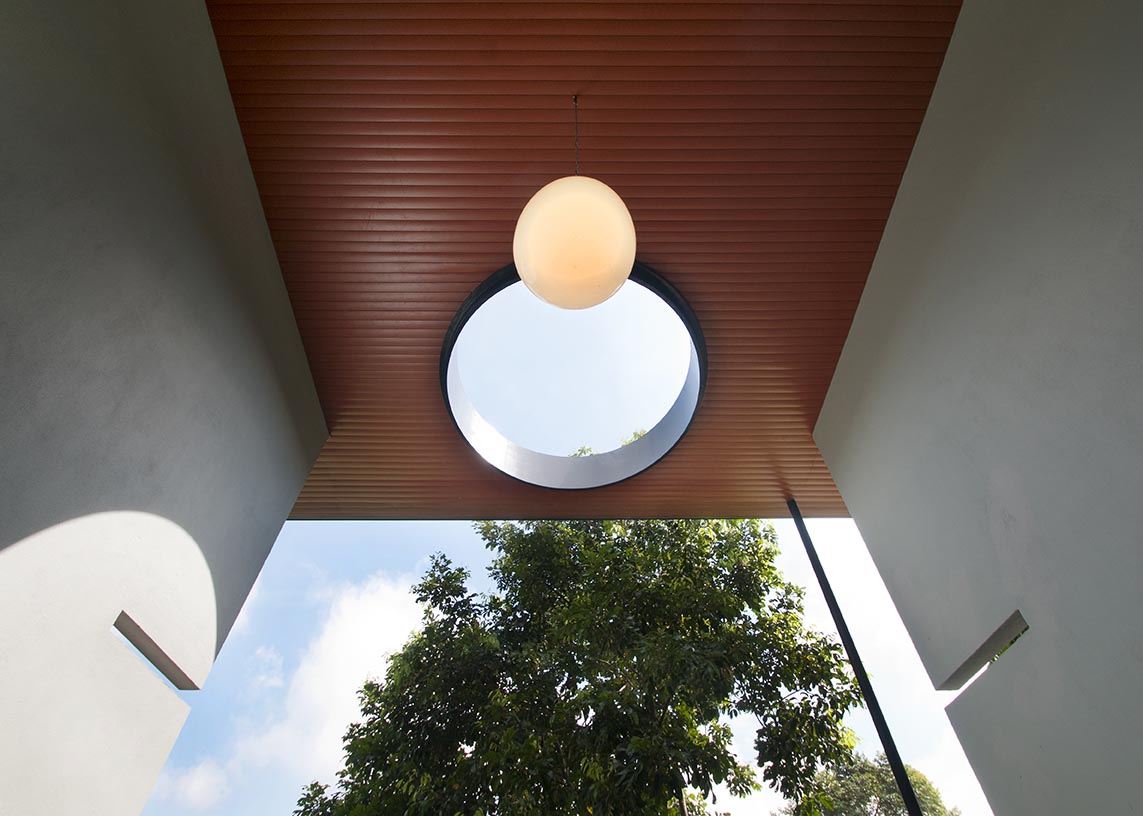

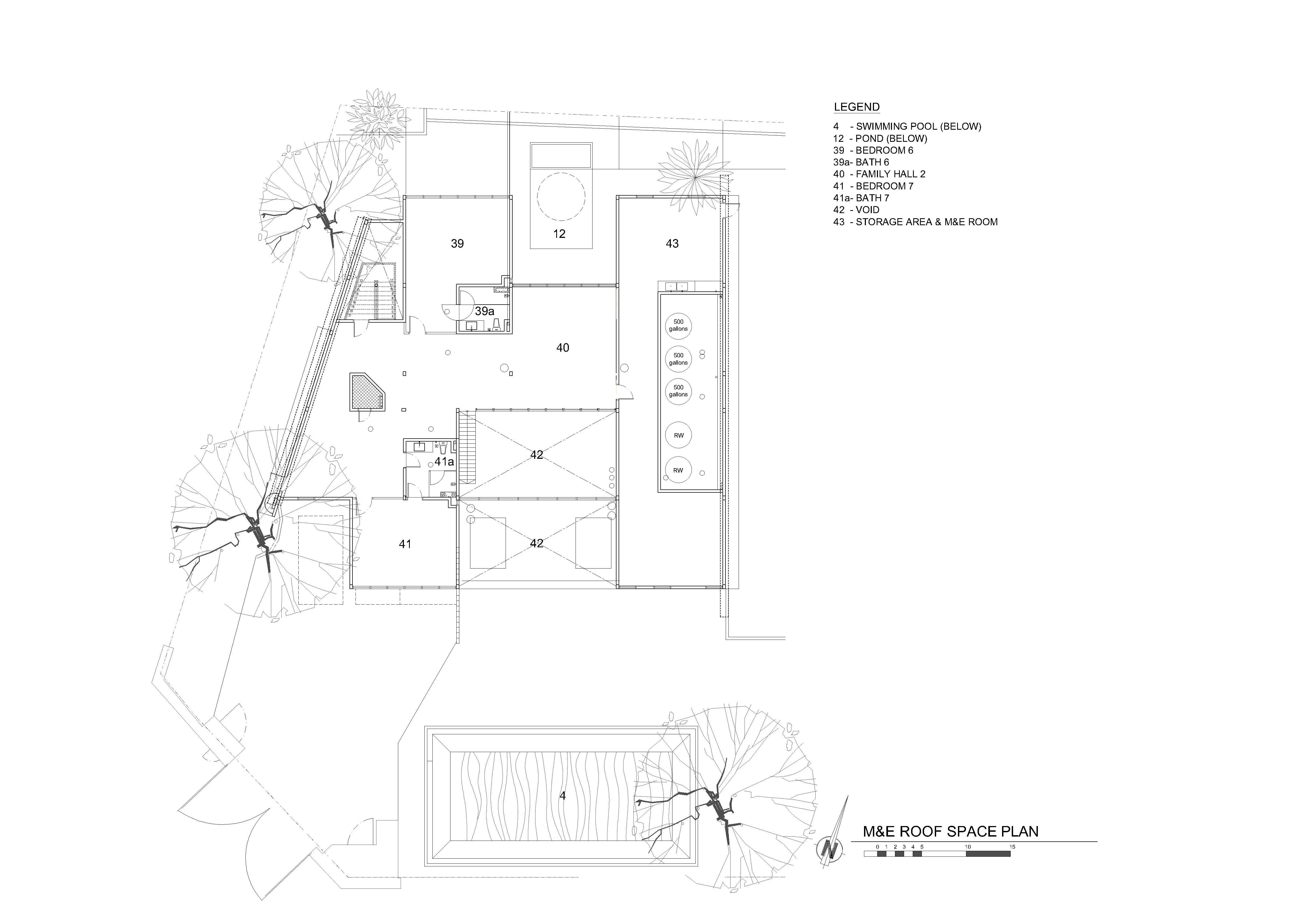

A specially designed wind turbine combined with a steel framed glazed pyramid provides the house with “stack effect” ventilation and light pipes. These 15 numbers of turbines are driven both by wind as well as convection when the air within the glass pyramids heat up as a result of the greenhouse effect.  A 3 degree differential is enough to spin the turbines by convection. The large canopy roof is pitched at 5 degrees to facilitate self cleaning of roofing material and solar panels. A 5 KW peak photovoltaic installation is mounted unto the large canopy roof and the generated electricity is sold back into the national electric grid. The solar hot water heaters are also located on the large roof area.

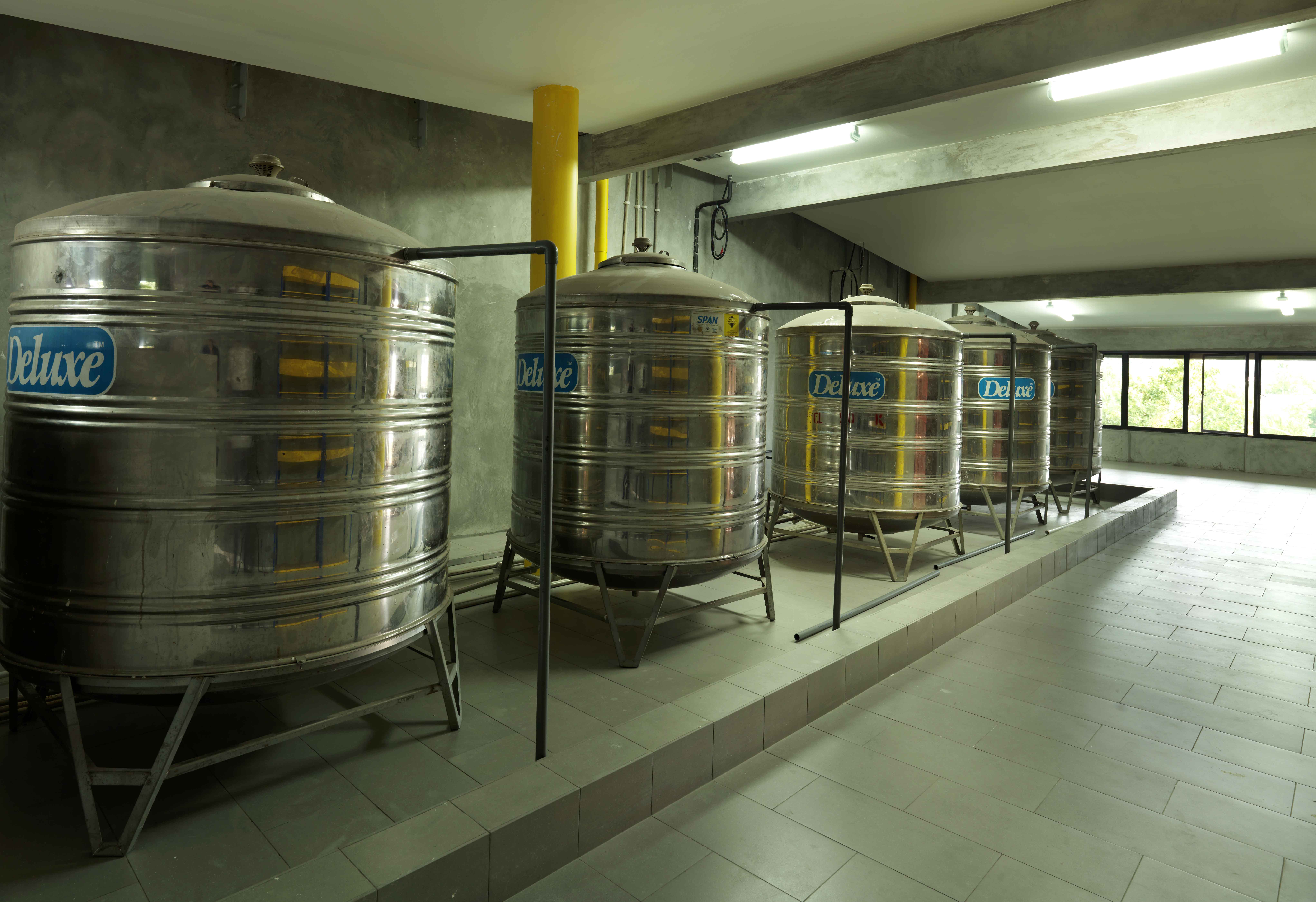

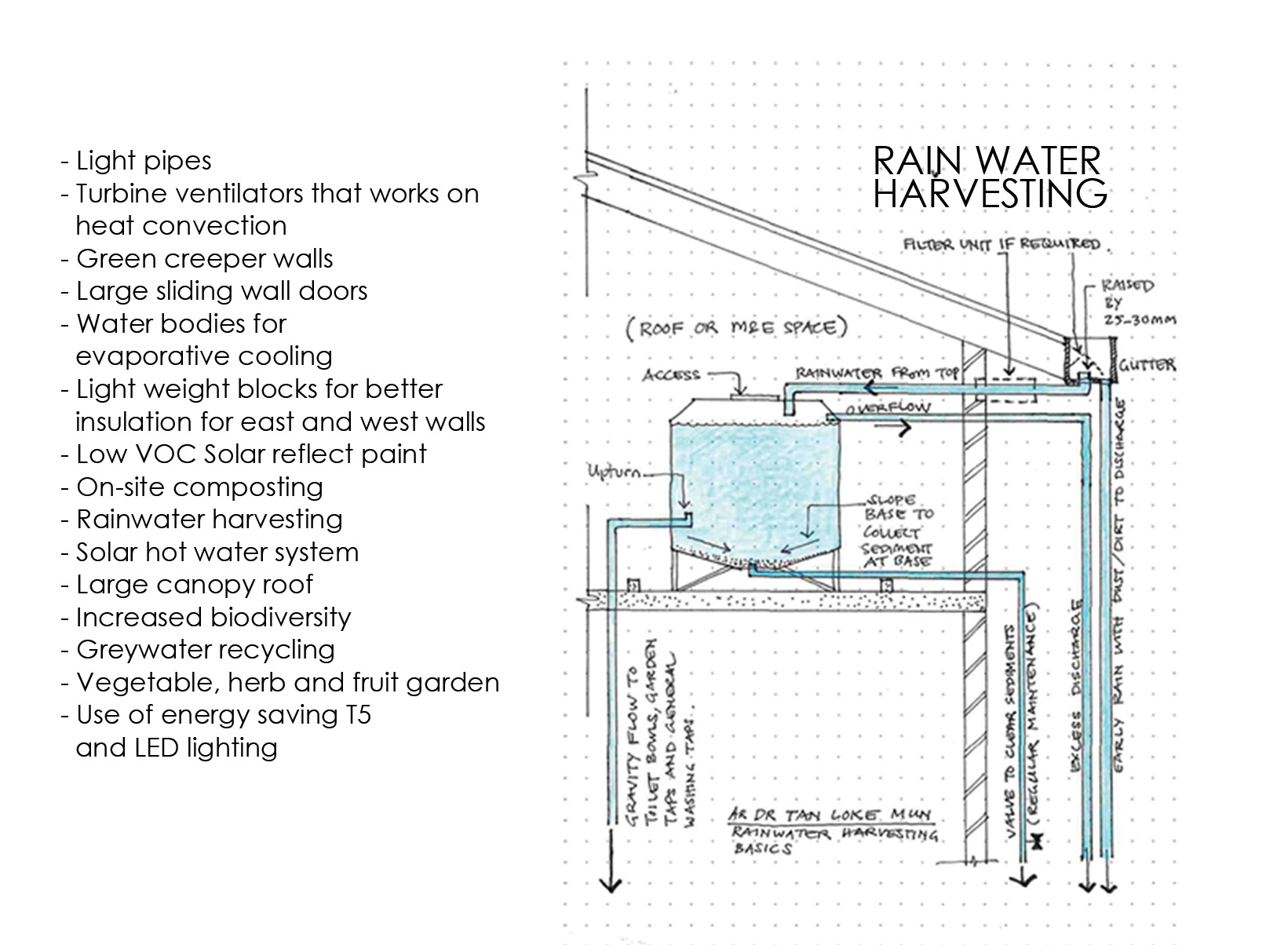

Rainwater collected on the canopy roof drains directly into the series of rainwater harvesting tanks. These are aligned in series for sedimentation control and the water from the last tank is used for all the toilet flushing, gardening and car washing requirements. All the tap fittings and sanitary wares have water saving and reduction valves.

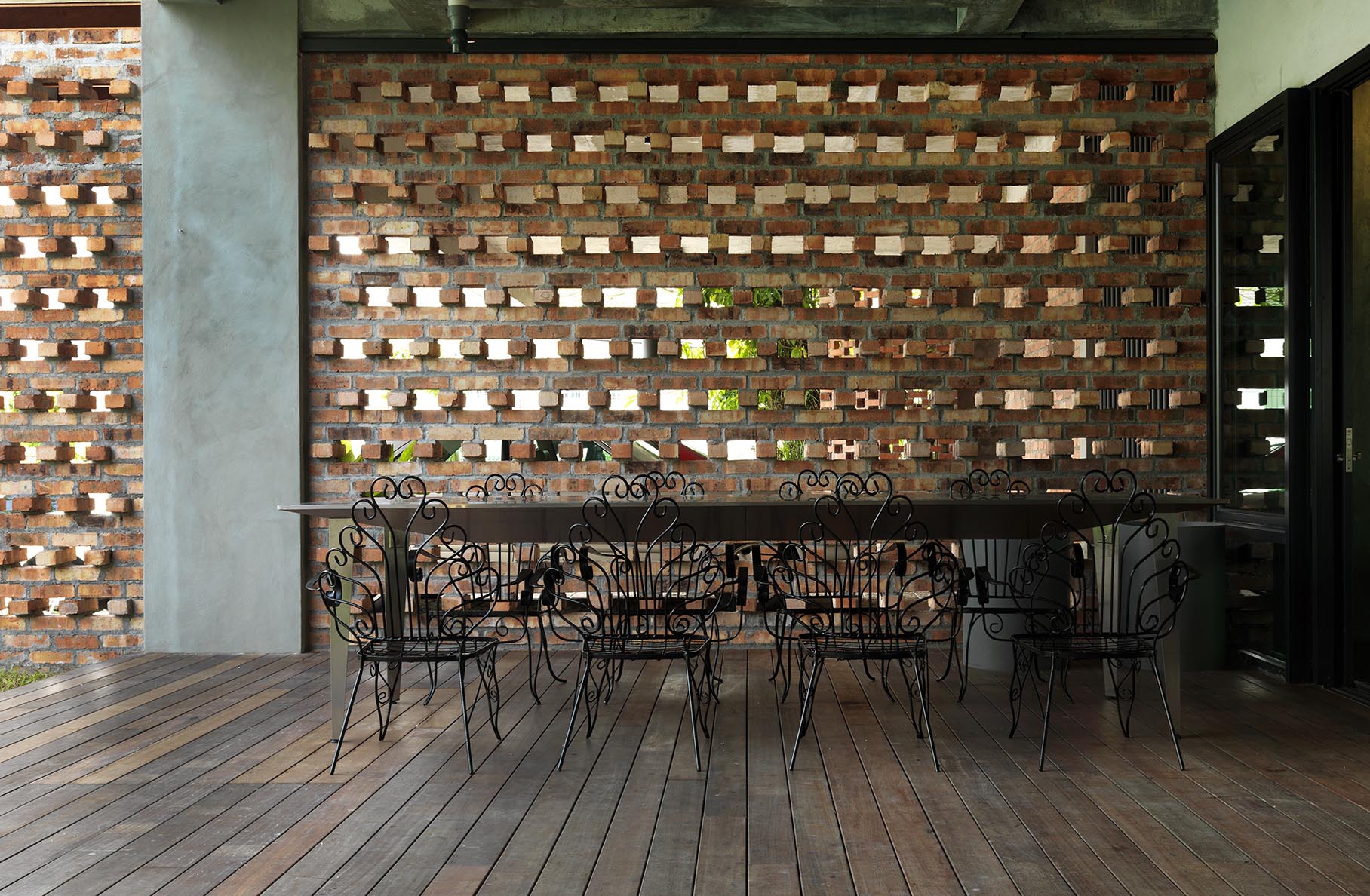

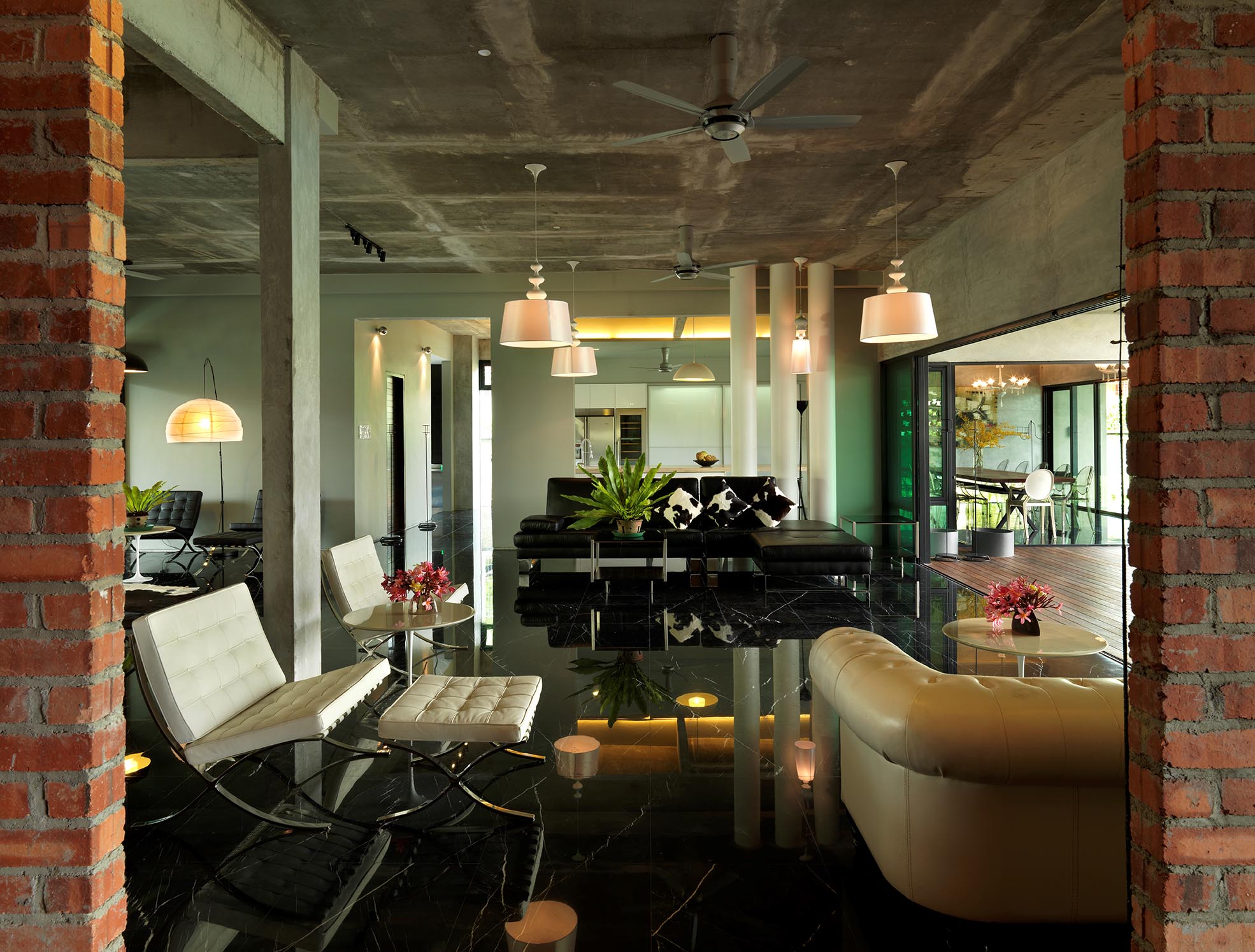

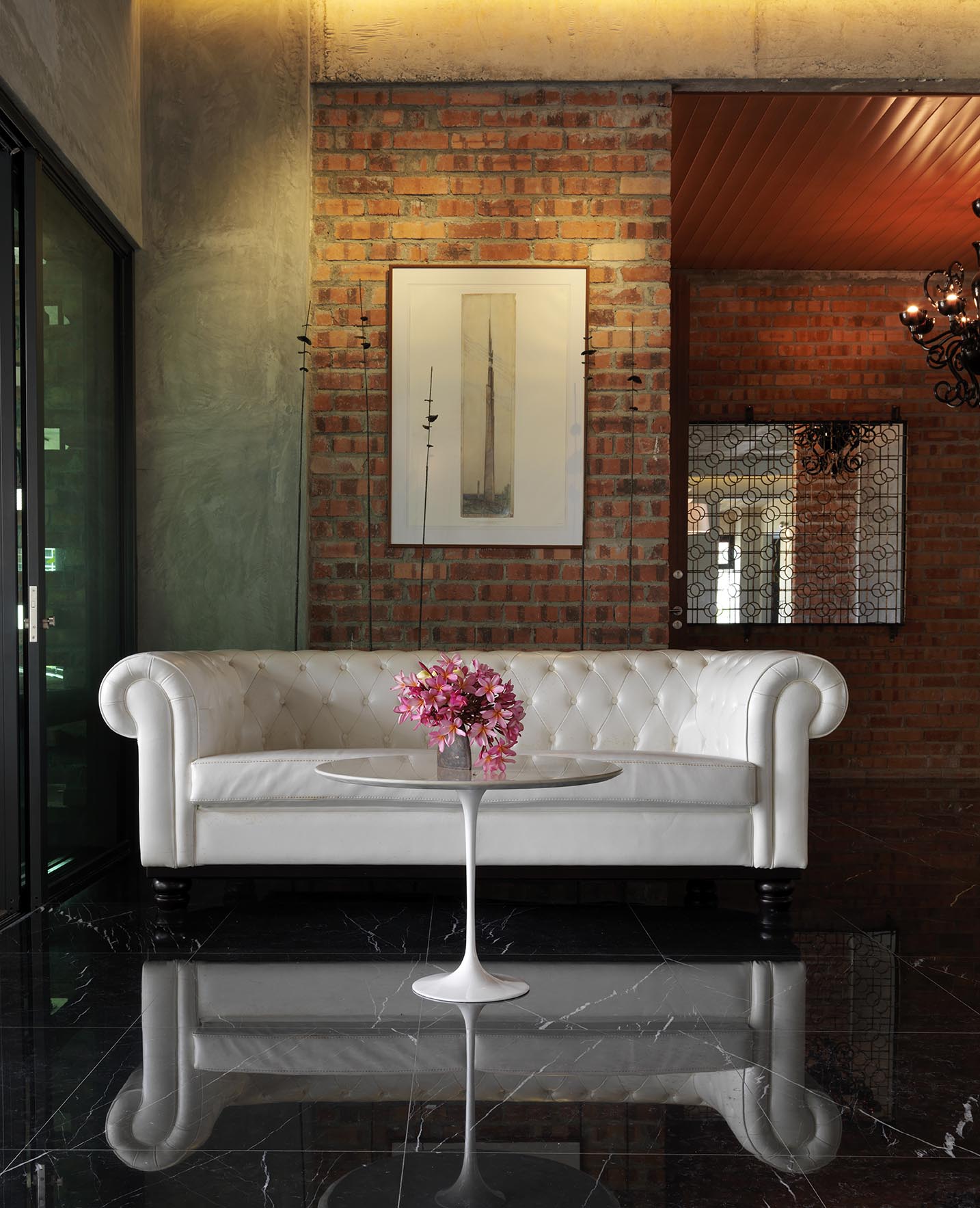

The majority of the house has bare natural finishes – raw off-form concrete walls and ceilings, cement plastered walls without paint and natural fair-faced common red clay brickwork. Stonework for bathrooms, driveway and Ground Floor living areas all come from project rejects. The timber flooring and upper decks are all Forest Stewardship Council (FSC) certified whilst the ground floor decking timbers are old recycled chengal collected over many years. Limited surfaces are painted with Low VOC paints. All internal joinery work has low VOC content and also water based glues. The 1m X 1m modular book shelves are all made from recycled waste plywood off-cuts with low VOC coatings and water based glues. The modules are stackable and can be relocated with ease in the boot of a car.

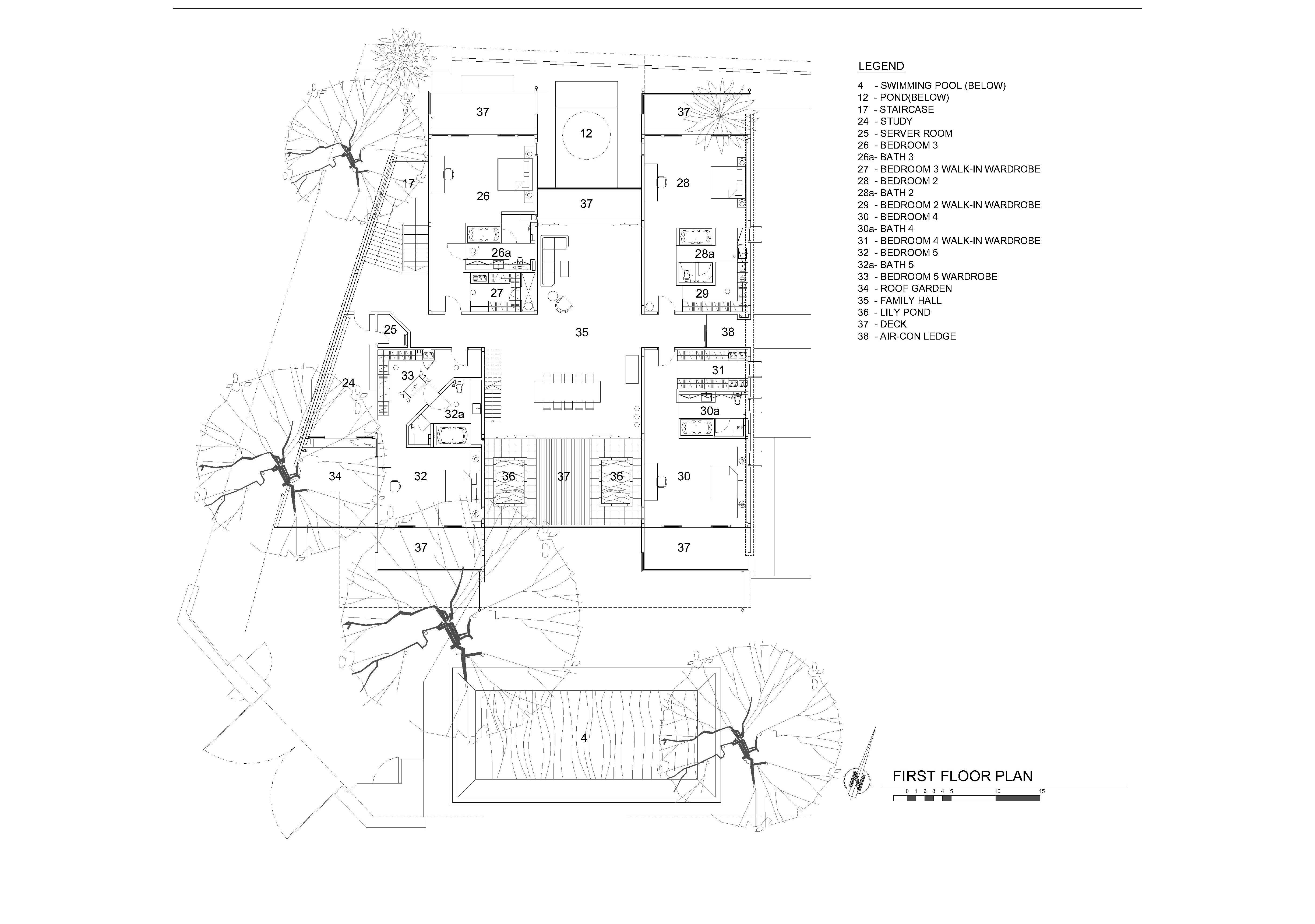

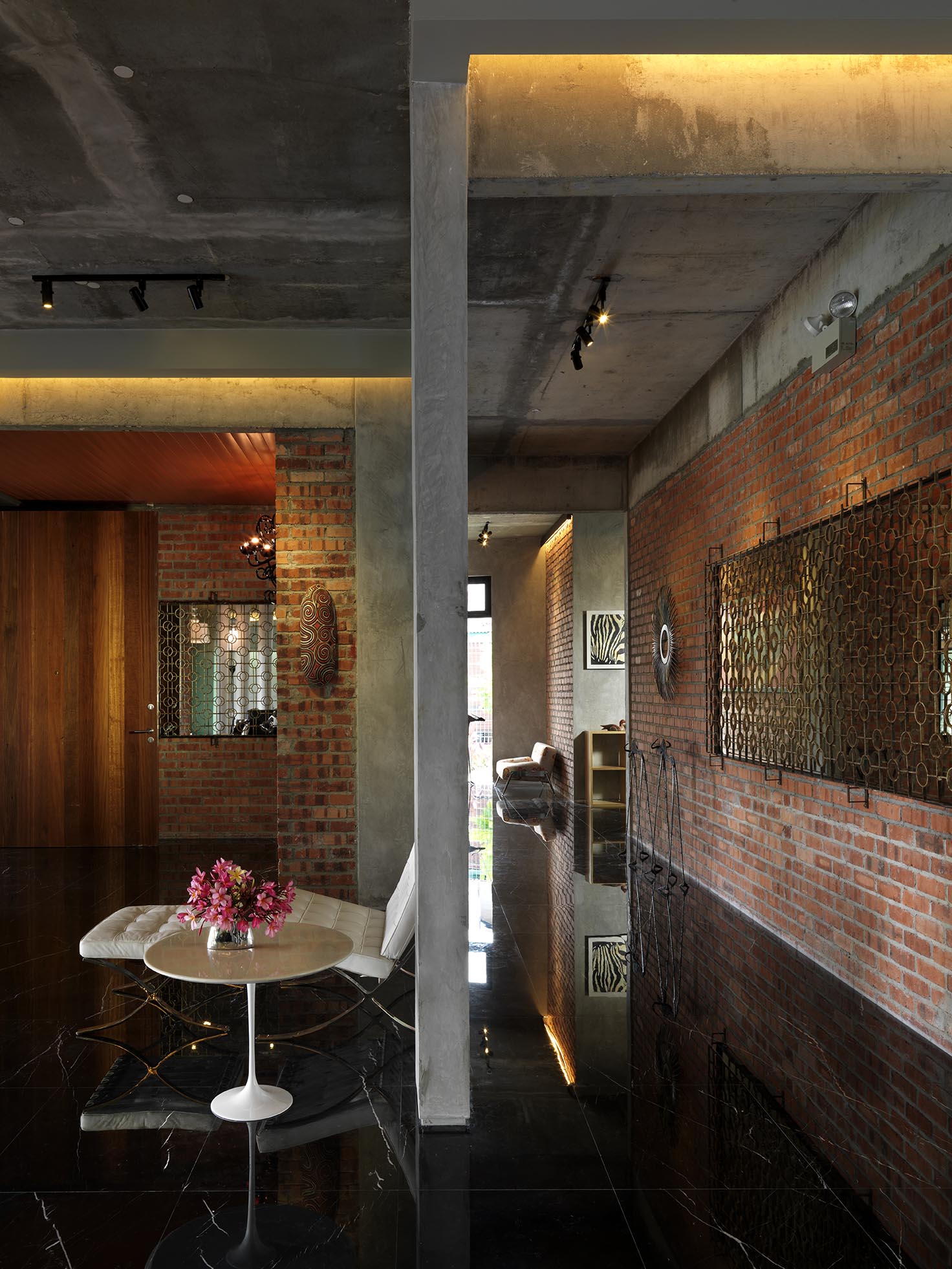

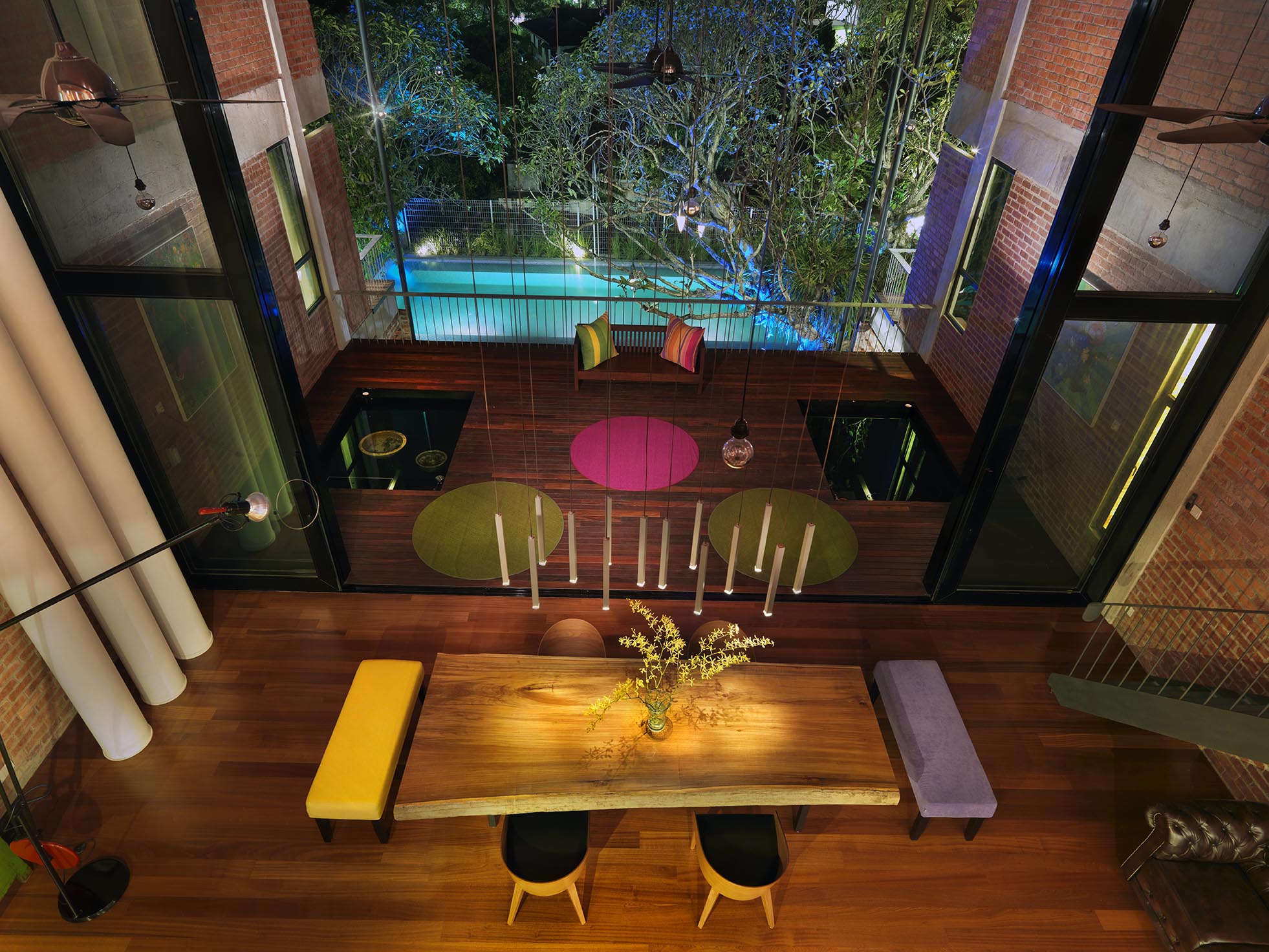

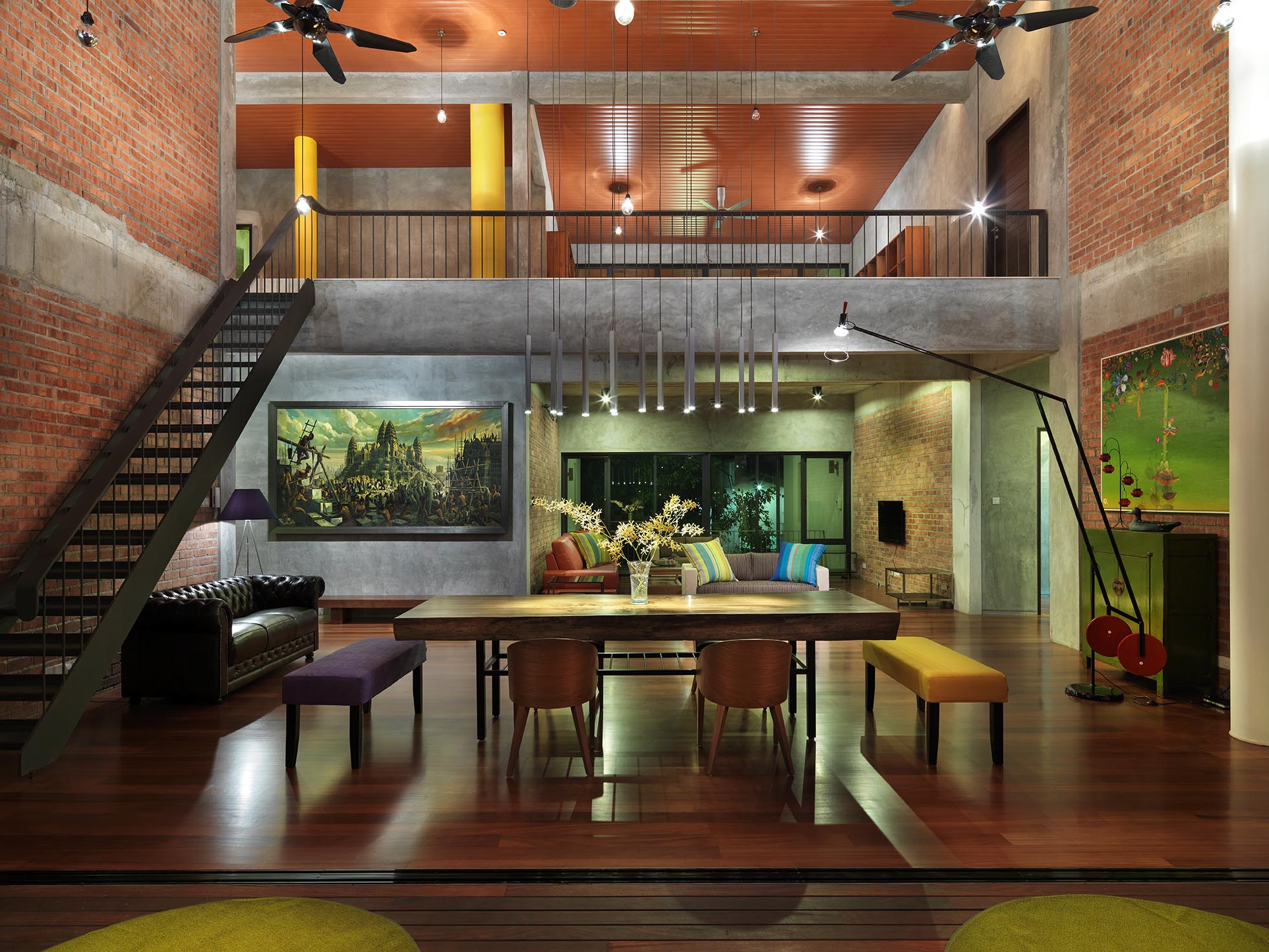

The double volume Family room is located on the first floor and the 7m high full sliding glass walls facilitate maximum cross ventilation whilst also opening up the entire internal living space unto the outdoor deck. Lighting for the house are predominantly energy saving T5 tubes, LEDs and compact fluorescents. The house has full home office capability with Cat5 fibre-optics and broadband connections.

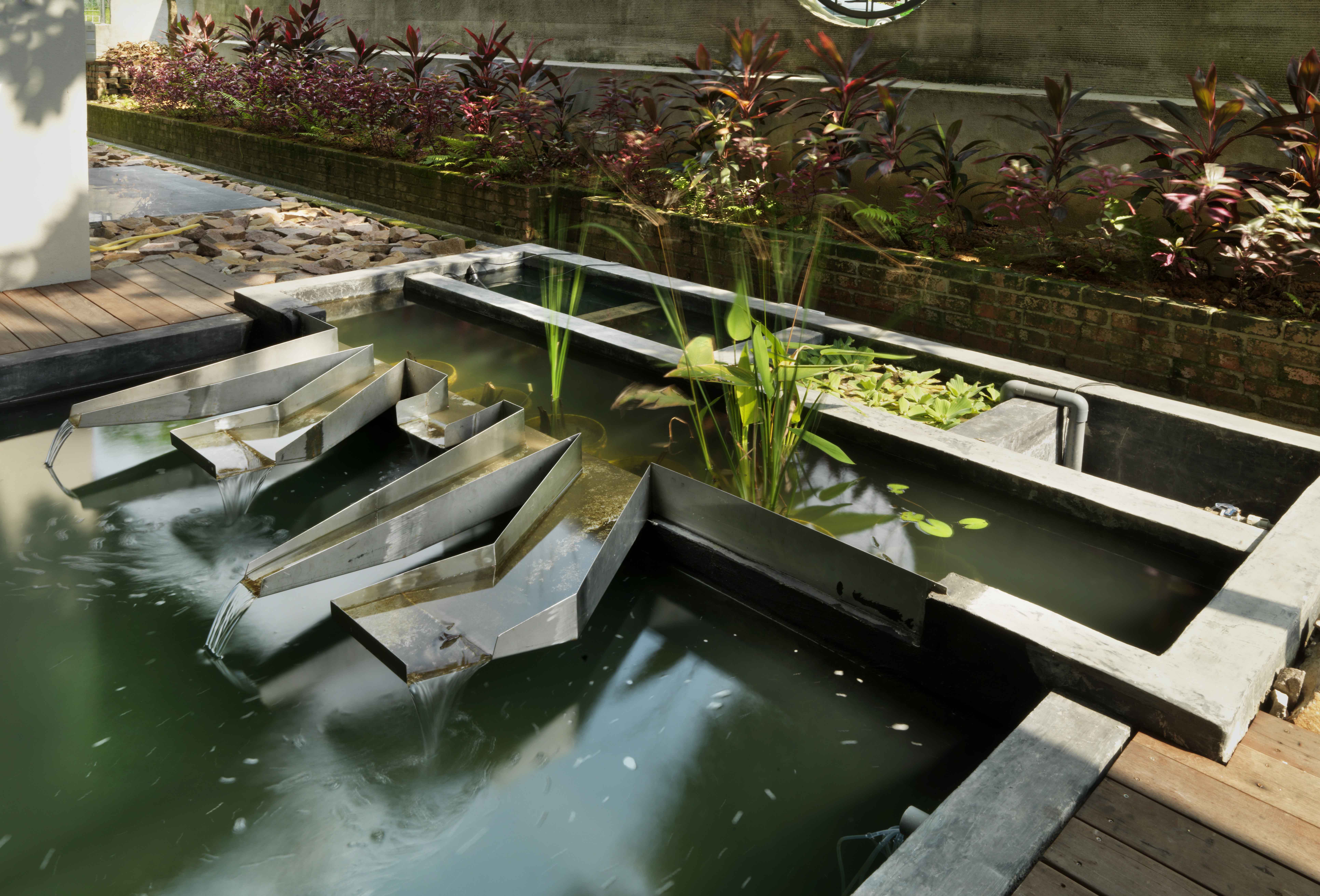

The swimming pool and koi pond are located at the two extreme north-south ends and provide evaporative cooling for the house. Blackwater is treated in the onsite sewerage treatment plant and the recycled water is used for garden irrigation. A composting yard treats all the household organic and garden wastes and provides high grade compost fertilizer for the vegetable and fruit gardens. All new trees and plants are tropical natives that are generally maintenance free and suitable for the Malaysian climate.

S11 house is Malaysia’s first GBI Platinum (DA) rated building.

TECHNICAL DATA

Total site area
1,240 sq m (13, 347 sq ft)
Total built up area
1,100 sq m (11,840 sq ft)
Total cost of works
approximately RM2.1m

Owners
Dr. Tan Loke Mun & Chew May-Ann
Architect
Ar. Dr. Tan Loke Mun
of ArchiCentre Sdn Bhd

GBI Facilitator
Greenscapes Sdn Bhd
Interior Designer
ArchiCentre Sdn Bhd
Civil & Structural
Jurutera Perunding TSSC Lim
Landscape
Ar. Dr. Tan Loke Mun
of ArchiCentre Sdn Bhd

Contractor
Atlantic Builders Sdn Bhd
Photo Credits
Lin Ho

AWARDS & ACCOLADES

S11 House has recently been awarded the Platinum (CVA) Green Building Index certification

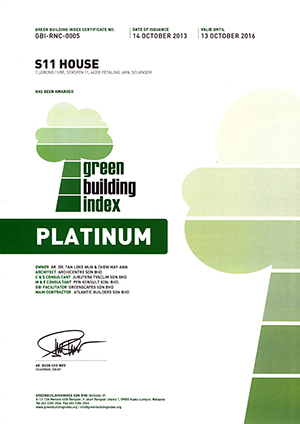

S11 House GBI CVA Platinum Cert

Shortlisted • World Architecture Festival Awards 2013 • House Category

Winner • ASEAN Energy Awards 2013 • Energy Management for Buildings and Industries Awards • Tropical Building Category

Excellence Award • Asia Pacific Interior Design Awards for Elite APDC Awards 2011 • Residential Unit Category

Sustainable Design Award • Asia Pacific Interior Design Awards for Elite APDC Awards 2011 • Residential Unit Category

Futurarc Green Leadership Award 2012 • Residential Architecture • Individual House Category

Gold Medalist • The Edge-PAM • My Dream Home Awards

Gold Medalist • The Edge-PAM My Dream Home Awards • Green Home Award

Winner • PAM Architectural Steel Awards 2011 • Colourbond Award

Mention Award • PAM Architectural Steel Awards 2011 • Single Residential Award

Silver Medal • PAM Award for Architectural Excellence • Single Residential Category

AWARDS LOGO

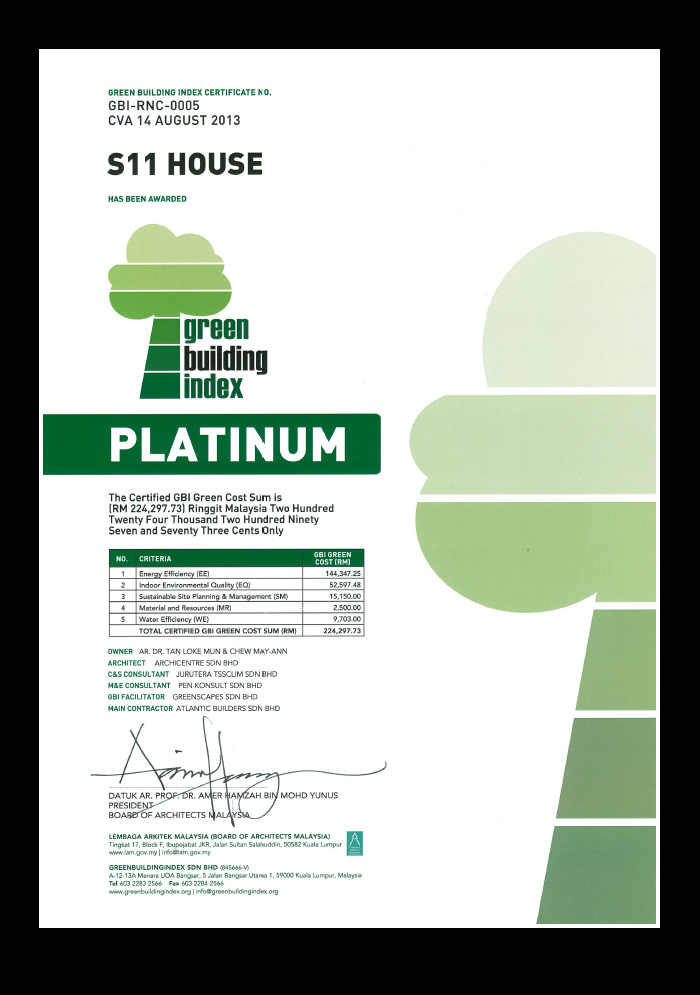

S11 House has been awarded the certified GBI Green Cost Sum with the amount RM224,297.73 S11 House Green Cost Natural affinity - eco-friendly home by Dr Tan Loke Mun, New Home, Trends Volume 2713 Trends Green Living, Unreserved - The Malaysian Reserve News, 17 April 2014 Green Living, Unreserved -the malaysian reserve news - 17 Apr 2014 Green Building Energy-Saving, Property Weekly, NanYangSiangPau, 28 February 2014 Green Building Energy-Saving, Property Weekly, NanYangSiangPau, February 28, 2014 Jalinan Ilham Konkrit & Terracotta, Interior, Impiana, September 2013 - 14th Anniversary Issue Impiana   Green Green Grass of Home, Dwellings, Dwell Asia, May/June 2013 Dwell Platinum in Green, Life&Times - Green, News Straits Times, 26 January 2013 Saturday NST   S11 House, Archdaily, 2 January 2012 Archdaily   S11 House, Inhabitat, 11 Jan 2013 Inhabitat   S11 House, Hot News - Lifestyle, Jessica, March 2013 JESSICA   Green by Design, Projects, Ideas Asia 2012 IdeasAsia

HOUSEHOLD ELECTRICAL CONSUMPTION

FEED-IN TARIFF READINGS

BILLING DATE

05/09/2018
06/08/2018
07/07/2018
06/06/2018
05/05/2018
06/04/2018
07/03/2018
07/02/2018
06/01/2018

06/12/2017
06/11/2017
07/10/2017
09/09/2017
07/08/2017
07/07/2017
07/06/2017
05/05/2017
07/04/2017
08/03/2017
06/02/2017
06/01/2017

07/12/2016
07/11/2016
05/10/2016
05/09/2016
05/08/2016
04/07/2016
06/06/2016
06/05/2016
05/04/2016
05/03/2016
04/02/2016
04/01/2016

04/12/2015
04/11/2015
04/10/2015
04/09/2015
04/08/2015
04/07/2015
05/06/2015
07/05/2015
06/04/2015
06/03/2015
05/02/2015
04/01/2015

04/12/2014 02/11/2014 02/10/2014 02/09/2014 02/07/2014 31/07/2014 29/06/2014 02/06/2014 29/04/2014 02/04/2014

04/12/2013
31/10/2013
01/10/2013
01/09/2013
01/08/2013
01/07/2013
03/06/2013
02/05/2013
01/04/2013
01/03/2013
04/02/2013
02/01/2013

03/12/2012
01/11/2012
01/10/2012
04/09/2012
01/08/2012
01/07/2012

ENERGY (KWH)

2139
2135
2431
2213
1846
1796
1934
2198
1972

1909
1836
1633
1972
2075
1972
2007
1810
1961
1980
2410
1971

2233
2590
2298
2132
2147
2107
2337
2420
2520
2107
2379
2169

2081
2215
2135
2301
2396
1898
2227
2334
2292
1619
1916
1618

3504
2000
1628
1886
2196
2220
2196
1923
1771
2129

2302
1843
2258
1414
1785
2125
1917
2232
2196
1923
1771
2129

1735
1801
2000
2204
2434
2421

AMOUNT (RM)

1103.07
1100.79
1269.80
1137.47
935.77
907.22
986.01
1128.91
1007.71

971.74
930.06
814.14
1007.71
1066.53
1007.71
1015.87
915.21
1001.43
1012.28
1257.81
1007.14

1122.80
1309.39
1158.93
1066.66
1063.18
1052.77
1176.63
1226.74
1278.34
1052.77
1195.68
1072.93

1023.13
1092.65
1052.75
1139.82
1195.91
922.75
1103.21
1161.89
1134.98
928.00
978.56
818.47

1765.96
943.92
824.27
973.95
1153.79
1167.71
1153.79
979.73
892.94
1097.36

961.98
766.11
957.03
569.40
739.51
895.42
800.40
944.67
944.67
847.38
571.91
861.48

569.85
569.40
543.71
838.10
749.27
257.95

BILLING DATE

06/09/2018
07/08/2018
07/07/2018
06/06/2018
05/05/2018
06/04/2018
08/03/2018
07/02/2018
06/01/2018

06/12/2017
07/11/2017
09/10/2017
12/09/2017
07/08/2017
07/07/2017
08/06/2017
05/05/2017
07/04/2017
08/03/2017
06/02/2017
07/01/2017

07/12/2016
08/11/2016
13/10/2016
17/09/2016
11/08/2016
29/06/2016
08/06/2016
06/04/2016
05/03/2016
04/02/2016
06/01/2016

01/12/2015 01/11/2015 01/10/2015 01/09/2015 01/08/2015 01/07/2015 23/06/2015 01/05/2015 03/04/2015 04/03/2015 04/02/2015 05/01/2015

01/12/2014
09/11/2014
08/10/2014
07/09/2014
08/08/2014
10/07/2014
10/06/2014
11/05/2014
09/04/2014
10/03/2014
10/02/2014
15/01/2014


20/11/2013
10/10/2013
10/09/2013

07/07/2013
07/06/2013
03/05/2013
05/04/2013
07/03/2013
06/02/2013
06/01/2013

07/12/2012
08/11/2012
06/10/2012
30/09/2012
06/08/2012
06/07/2012

ENERGY (KWH)

452
417
409
397
396
425
385
366
343

347
393
361
425
417
421
461
354
423
412
373
346

340
458
451
418
429
465
253
487
414
491
362

330
387
460
387
442
109
713
374
427
346
426
272

212
484
482
448
454
494
426
476
484
485
339
713


714
366
149

511
511
612
446
442
396
422

403
380
450
300
451
500

AMOUNT (RM)

659.92
608.82
597.14
579.62
578.16
620.50
562.10
534.36
500.78

506.62
573.78
527.06
620.50
608.82
614.66
673.06
516.84
617.58
601.52
544.58
505.16

496.40
668.68
658.46
610.28
626.34
678.90
369.52
711.02
604.44
716.86
528.52

481.80
565.02
671.60
565.02
645.32
159.14
1040.98
546.04
623.42
505.16
621.96
397.12

309.52
706.64
703.72
654.84
662.84
721.24
621.96
694.96
706.64
708.10
494.94
701.64


1042.44
534.36
217.54

745.06
745.06
893.52
651.16
645.32
578.16
616.12

588.38
554.80
657.01
569.40
658.46
730.00

RAINWATER HARVESTING QUALITY
Study by Janet Leong
Postgraduate at Monash University Sunway
Dated 30 January 2015

Number of samples
Average of E. coli (CFU/ 100mL)
StdDev of E. coli (CFU/ 100mL)
Average of Total coliforms (CFU/ 100mL)
StdDev of Total coliforms (CFU/ 100mL)
Average of pH
StdDev of pH
Average of BOD5 (mg/L)
StdDev of BOD5 (mg/L)2
Average of COD (mg/L)
StdDev of COD (mg/L)
Average of TSS (mg/L)
StdDev of TSS (mg/L)
Average of PO4-P (mg/L)
StdDev of PO4-P (mg/L)2
Average of TDS (mg/L)
StdDev of TDS (mg/L)
Average of NH3-N (mg/L)
StdDev of NH3-N (mg/L)
Average of Colour (Pt-Co)
StdDev of Colour (Pt-Co)
Average of Turbidity (NTU)
StdDev of Turbidity (NTU)

3
0.00
0.00
0.00
0.00
4.035
0.06
0.44
0.44
0.00
0.00
2.00
2.65
0.18
0.15
164.33
282.90
0.11
0.09
5.00
5.29
1.18
0.61

Standard Data

Parameter Units Malaysian standards Singaporean standard
    Class IIB Class IV Std A Std B PUB
E.coli CFU/100mL 0
Total coliforms CFU/100mL 500 50000 10
pH 6.0-9.0 5.0-9.0 6.0-9.0 5.5-9.0 6.0-9.0
BOD5 mg/L 3 12 20 50 5
COD mg/L 25 100 50 100
Colour Pt-Co 150 15
Turbidity NTU 50 2
NH3-N mg/L 0.3 2.7
NO3-N mg/L 7 5
TN mg/L
PO4-P mg/L 0.612903
TSS (spectrophoto) mg/L 50 300 50 100
TDS mg/L 4000
LOCATION

No. 7, Jalan 11/8E, Petaling Jaya
Selangor Darul Ehsan, Malaysia

GPS Coordinates 3.110766,101.651427
